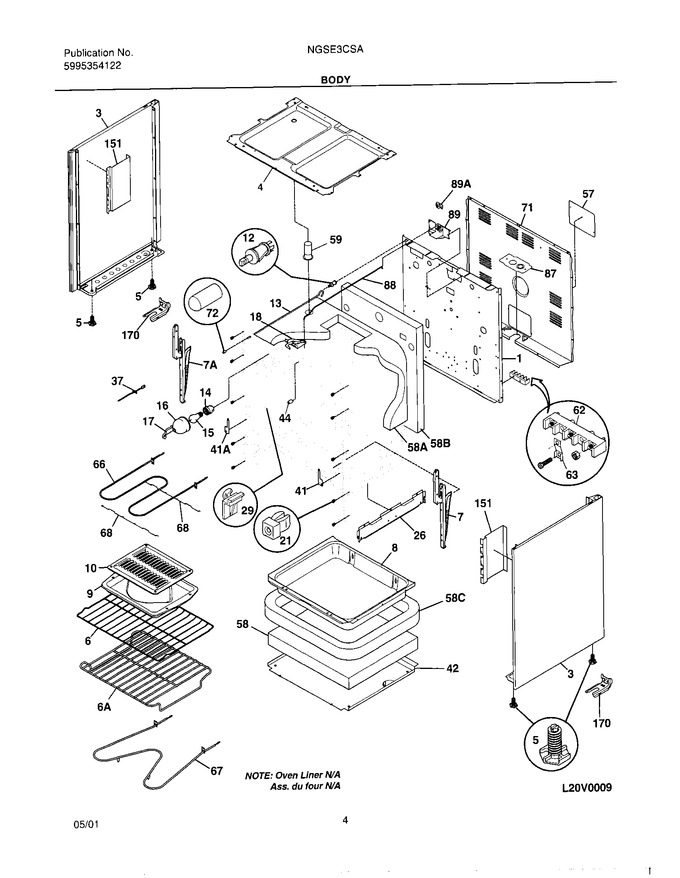

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316201300		Back,main		Appelez-nous	-
3	316230103		Panel-bodyside,white ,lh		Appelez-nous	-
3	316230102		Panel-bodyside,white ,rh		Appelez-nous	-
4	5304522901		Burner Box   (Replaces: 316201401)				$ 85.69
5	316129200		Screw,leveling ,plastic ,with Stop				$ 10.92
6	316214401		Rack,oven Sump		Appelez-nous	-
6	316067902		Rack,oven			Immediately	$ 103.10
7	316205001		Hinge,oven Door ,lh		Appelez-nous	-
7	316205000		Hinge,oven Door ,rh		Appelez-nous	-
8	316201501		Panel-oven Bottom,sump				$ 229.64
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
12	316027701		Switch-oven Light		Appelez-nous	-
13	316238800		Rod,light Switch		Appelez-nous	-
14	316116400		Receptacle-lamp,oven			Immediately	$ 56.10
15	40A15		Light Bulb/lamp   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
18	316405800		Latch-door   (Replaces: 316213900)			Immediately	$ 56.74
21	3014099		Spacer,bodyside				$ 3.62
26	316211800		Shield,chassis Filler ,side Lower ,(2)		Appelez-nous	-
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
37	316233903		Probe-oven Temp   (Replaces: 316233900)			Immediately	$ 57.29
41	316233400		Cover,hinge Cutout ,rh				$ 67.99
41	316233500		Cover-hinge,cutout ,lh				$ 16.96
42	316206200		Shield,wool ,lower		Appelez-nous	-
44	316246500		Spacer-door				$ 34.39
57	316081100		Cover,access		Appelez-nous	-
58	316240400		Insulation,oven Sump		Appelez-nous	-
58	316240300		Insulation,oven Bottom		Appelez-nous	-
58	316047708		Insulation,2`` ,oven Wrapper				$ 222.56
58	316240100		Insulation,oven Back		Appelez-nous	-
59	316073604		Tube,oven Vent		Appelez-nous	-
62	5303935061		Terminal Block Kit		Appelez-nous	-
63	5301145190		Plate=ground Strap		Appelez-nous	-
66	316203200		Element-broil			Immediately	$ 164.45
67	316225001		Element-bake   (Replaces: 316225000)			Immediately	$ 191.86
68	316203400		Support-element				$ 70.88
71	316015810		Shield-rear Wall,galv Steel		Appelez-nous	-
72	316234500		Cover,rod End ,light Switch				$ 14.39
87	316081200		Bracket,cable Mtg		Appelez-nous	-
88	316203500		Rod-latch,auto				$ 72.30
89	316135202		Motor,latch/lock		Appelez-nous	-
89	316245800		Bracket,latch ,rear		Appelez-nous	-
151	316239300		Shield,bodyside		Appelez-nous	-
170	316116000		Screw`concrete Tpg `1.75 Inch ,anti-tip Brkt				$ 12.89
170	316112005		Kit-anti-tip Bracket (complete W/template & Screw)   (Replaces: 5303935180)			Immediately	$ 18.91
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
170	316112500		Template,anti-tip				$ 3.55
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	316085600		Insulator		Appelez-nous	-
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02
NI	316253202		Wiring Harness,main		Appelez-nous	-
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	316205500		Nut, Hex, 10-32   (Replaces: 5303308427)				$ 11.34
