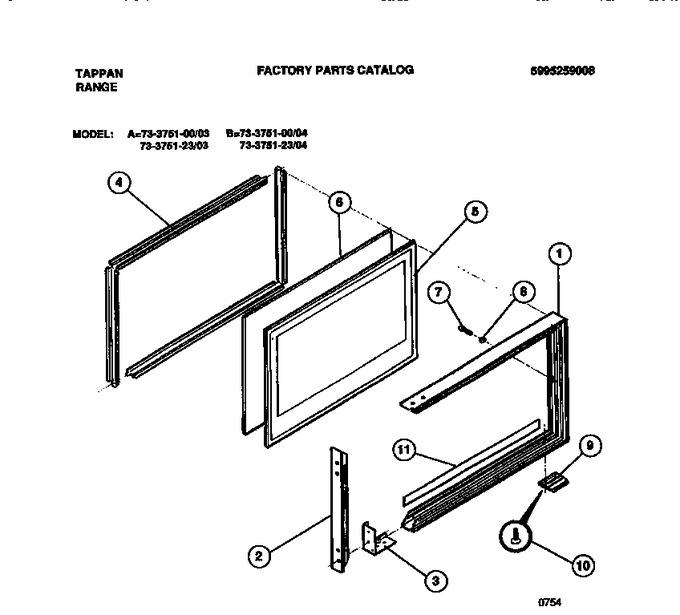

SELECT A DIAGRAM

01 - Range-electric


02 - Oven Controls


03 - Control Panel


04 - Electric Cooktop


05 - Door


06 - Door


07 - Elements


08 - Boody


09 - Cavity


10 - Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316013100		Frame-channel		Appelez-nous	-
2	5303290772		Frame-channel End		Appelez-nous	-
3	08011727		Gusset-corner (2)		Appelez-nous	-
4	08011721		Spacer-glass (2)		Appelez-nous	-
5	5303284806		Glass-outer		Appelez-nous	-
6	08011722		Glass-inner		Appelez-nous	-
7	5303935001		Strike-door		Appelez-nous	-
8	154079601		Hex-nut 10-24   (Replaces: 5303013272)				$ 0.41
9	08011729		Handle		Appelez-nous	-
10	5303212671		Screw 8-32 X 1/2`` Handle Mtg (2)		Appelez-nous	-
11	3051302		Spacer-glass		Appelez-nous	-
2A	5303284147		Screw 10-32 X 1/2`` Frame Assembly (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
