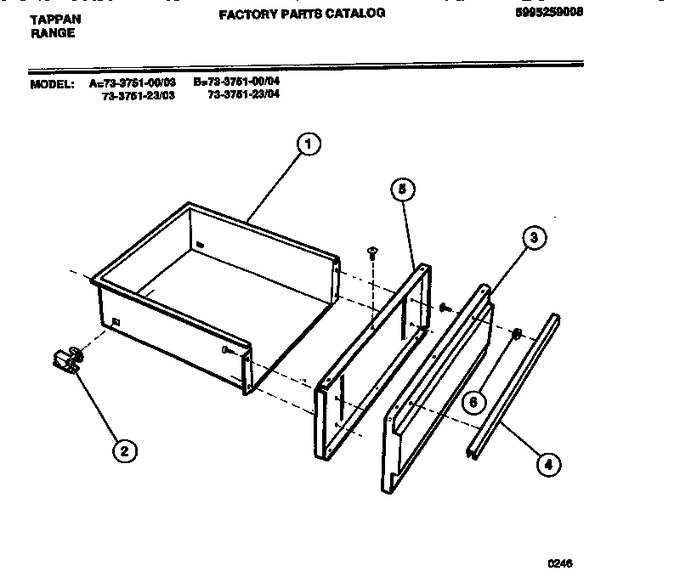

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31611501		Drawer-utility		Appelez-nous	-
2	3051163		Glide (2)			Immediately	$ 19.41
3	316056205		Panel-drawer-white		Appelez-nous	-
4	5303280334		Handle		Appelez-nous	-
5	3131975		Shield-pnl		Appelez-nous	-
6	3131387		Fastener-spacer (2)		Appelez-nous	-
3A	3131134		Panel-drawer-almond		Appelez-nous	-
6A	5303051818		Screw 8-18 X 1/2`` Drawer Assy (non-illustrated)		Appelez-nous	-
6B	08067785		Screw 8-18 X 1/2`` Hex Wshr Handle (2) (non-illustrated)		Appelez-nous	-
6C	3131903		Bumper				$ 55.36
