SELECT A DIAGRAM
02 - Backguard
03 - Body Parts
04 - Body Parts
05 - Door Parts
06 - Door Parts
07 - Motor And Electrical Parts
08 - Oven Body Parts
09 - Control Panel
SELECT A DIAGRAM
New Model Search:

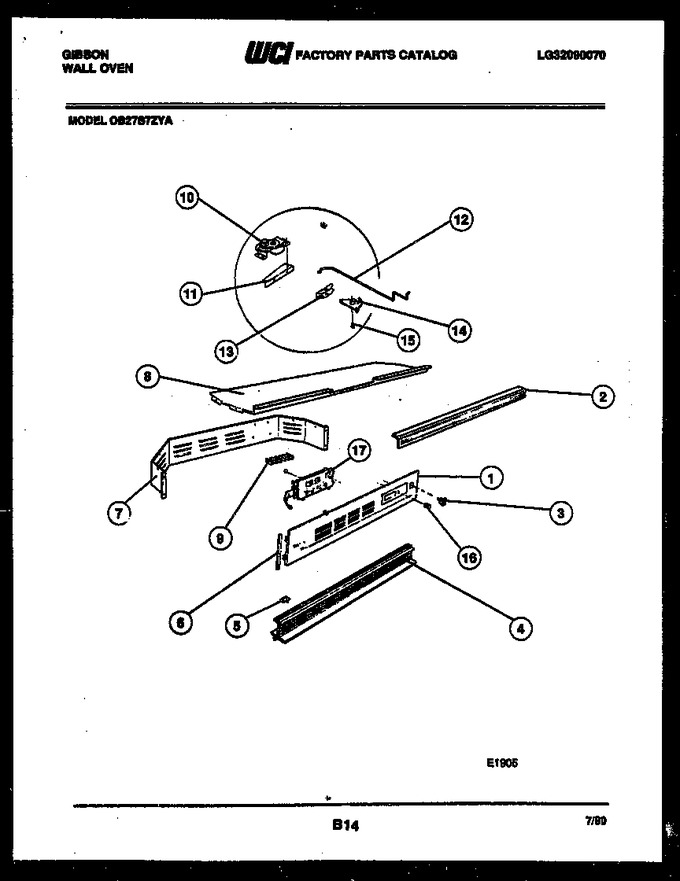

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303206737 | Switch-membrane |
|
- | |||||
| 2 | 5303209929 | Trim-top |
|
- | |||||
| 3 | 3051314 | Switch-rocker |
|
- | |||||
| 4 | 5303206739 | Trim-vent |
|
- | |||||
| 5 | 5303206740 | Bracket-trim Mtg (4) |
|
- | |||||
| 6 | 5303206741 | Trim-end Membrane (2) |
|
- | |||||
| 7 | 5303206742 | Housing-cont |
|
- | |||||
| 8 | 3016309 | Cover - Cont Housing |
|
- | |||||
| 9 | 5303051098 | Terminal Block |
|
- | |||||
| 10 | 3202381 | Motor-latch Assy |
|
- | |||||
| 11 | 3016276 | Base Motor Mtg |
|
- | |||||
| 12 | 3016241 | Rod-lock Mech |
|
- | |||||
| 13 | 3051647 | Housing, Latch |
|
- | |||||
| 14 | 3202387 | Latch, Door |
|
- | |||||
| 15 | 5308012004 | Axle-latch |
|
$ 8.29 | |||||
| 16 | 5303206743 | Knob-clock |
|
- | |||||
| 17 | 3202652 | Clock |
|
- |
