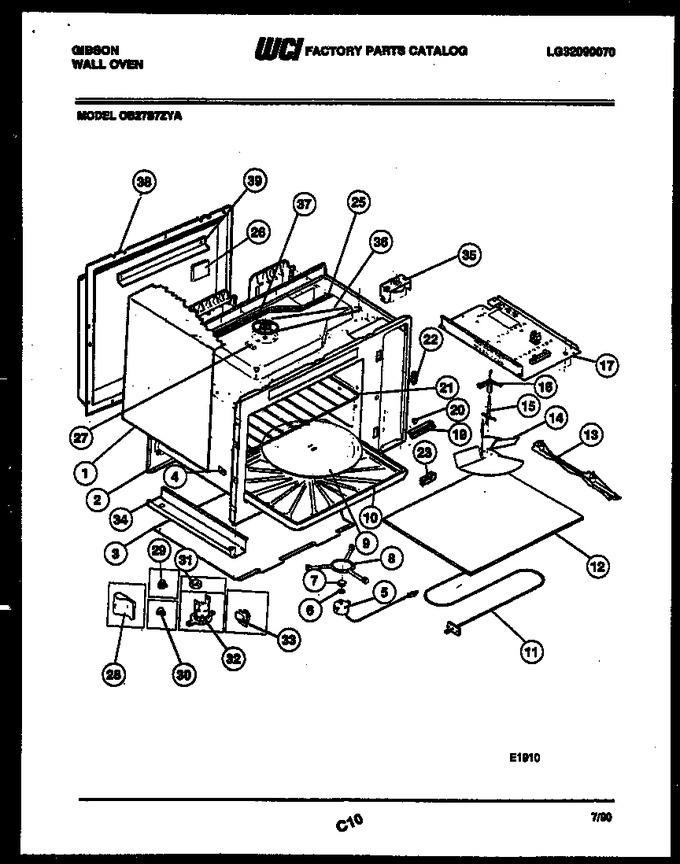

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303203194 | Wrapper-tp & Sides |
|
- | |||||
| 3 | 3014060 | Shield-ovn Bottom |
|
- | |||||
| 4 | 3203010 | Fastnr-hng Clips (Replaces: 5303012323) |
|
$ 14.89 | |||||
| 5 | 5308037652 | Motor-turntable |
|
- | |||||
| 6 | 5303017094 | Washer-microwave Seal (place Underneath--between Motor A |
|
- | |||||
| 7 | 5303011610 | Bushing-motor |
|
- | |||||
| 8 | 5303091004 | Supt-roller Assy |
|
- | |||||
| 9 | 5308037674 | Tray-oven (circular) |
|
- | |||||
| 10 | 5303011698 | Tray, Oven |
|
- | |||||
| 11 | 5303012207 | Element - Browner |
|
- | |||||
| 12 | 5303012681 | Glass-stirrer Cvr |
|
- | |||||
| 13 | 5303011777 | Channel-supt Rh |
|
- | |||||
| 13 | 5303011776 | Channel-supt Lh |
|
- | |||||
| 14 | 5308037708 | Fan Stirrer |
|
- | |||||
| 15 | 5303202875 | Supt-stirrer |
|
- | |||||
| 16 | 5303011826 | Collar-stirrer |
|
- | |||||
| 17 | 5303018904 | Channel-base Rh |
|
- | |||||
| 19 | 5303011555 | Brkt-control-mtg-lower |
|
- | |||||
| 20 | 5308037644 | Grommet-door |
|
- | |||||
| 21 | 5303206085 | Rack-oven |
|
- | |||||
| 22 | 5303200551 | Bezel-latch (2) |
|
- | |||||
| 23 | 5303018581 | Spacer-rack (4) |
|
- | |||||
| 25 | 5303011667 | Duct-air (foam) |
|
- | |||||
| 26 | 3091338 | Cover-lt Access |
|
- | |||||
| 27 | 5308014510 | Spacer - Wrapper |
|
- | |||||
| 28 | 5303012322 | Fastener-wrapper Clip (2) |
|
- | |||||
| 29 | 5303201365 | Plug-button (probe) |
|
- | |||||
| 30 | 5308037665 | Plug-button Tray (2) |
|
- | |||||
| 31 | 5303131215 | Fastener-twist Nut Chnl Supt L&r (4) |
|
- | |||||
| 32 | 5308037683 | Sw-thermo Cutout |
|
- | |||||
| 33 | 5303014221 | Supt-rack (8) |
|
- | |||||
| 34 | 5303011773 | Channel Base, Lh |
|
- | |||||
| 35 | 5303206759 | Motor-stirrer |
|
- | |||||
| 36 | 5303011495 | Belt-stirrer |
|
$ 23.31 | |||||
| 37 | 5303013647 | Pulley-stirrer |
|
- | |||||
| 38 | 5303091059 | Shield-rear Wall |
|
- | |||||
| 39 | 3091058 | Angle-air Baffle |
|
- | |||||
| NI | 5308037640 | Duct-air (foam) (non-illustrated) |
|
- | |||||
| NI | 5303014620 | Washer Stirrer (non-illustrated) |
|
- | |||||
| NI | 5303018849 | Label-cook Guide (non-illustrated) |
|
- | |||||
| NI | 5303011685 | Shield-oven Lite (mylar) (non-illustrated) |
|
- |
