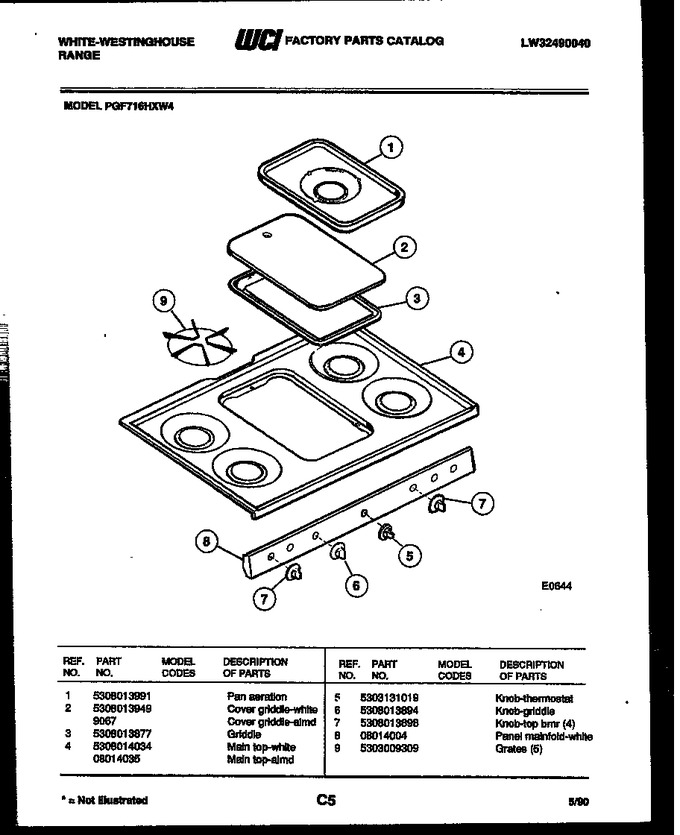

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Burner, Manifold And Gas Control
05 - Door Parts
06 - Broiler Drawer Parts
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308013991 | Pan Aeration |
|
- | |||||
| 2 | 5308013949 | Cover-griddle, White |
|
- | |||||
| 3 | 5308013877 | Griddle |
|
- | |||||
| 4 | 5308014034 | Main Top, White |
|
- | |||||
| 5 | 5303131019 | Knob-thermostat |
|
- | |||||
| 6 | 5308013894 | Knob-griddle |
|
- | |||||
| 7 | 5308013898 | Knob-top Brnr (4) |
|
$ 69.30 | |||||
| 8 | 08014004 | Panel Mainfold-white |
|
- | |||||
| 9 | 5303009309 | Grates (5) |
|
$ 150.36 |
