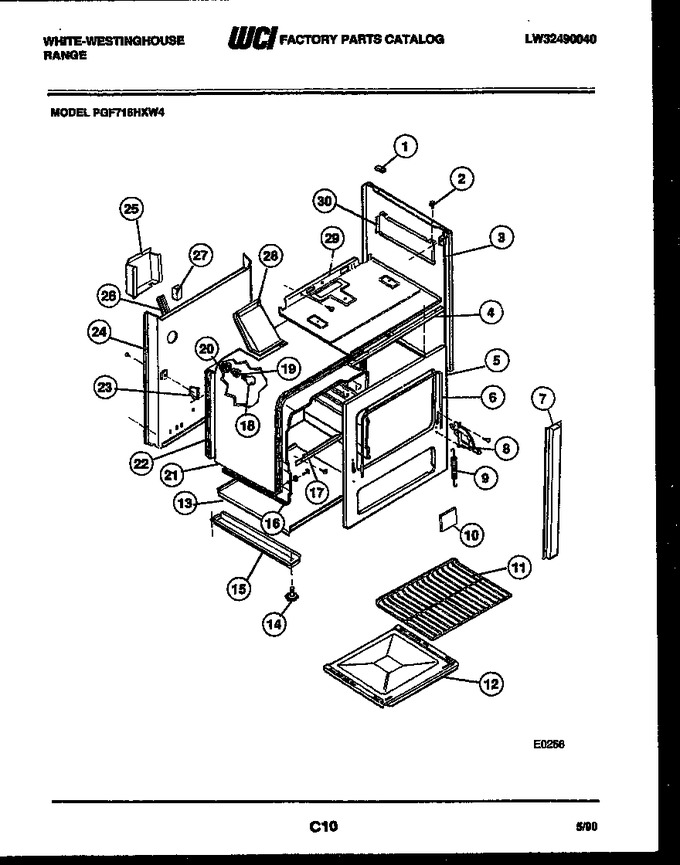

07 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3205587		Grommet-maintop		Appelez-nous	-
2	3051063		Grommet		Appelez-nous	-
3	5303051061		Panel-body Side (white)		Appelez-nous	-
4	3205765		Support-control Pnl		Appelez-nous	-
5	3205578		Front - Frame		Appelez-nous	-
6	5308008022		Seal,oven Door				$ 124.89
7	08013994		Filler Pnl Bodyside-white		Appelez-nous	-
8	5303204670		Oven Door Hinge-rh		Appelez-nous	-
9	5308008028		Spring-oven Door		Appelez-nous	-
10	08014023		Support - Base Rail		Appelez-nous	-
11	5303015714		Rack Oven (2)		Appelez-nous	-
12	3018282		Bottom Oven Liner		Appelez-nous	-
13	3011645		Bottom - Main		Appelez-nous	-
14	5303051080		Leg Leveller		Appelez-nous	-
15	5308068047		Base Rail		Appelez-nous	-
16	3018284		Liner - Side Rh		Appelez-nous	-
17	3131038		Support-oven Btm		Appelez-nous	-
18	40A15		Bulb, Oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
19	5303009410		Recetacle Ov Lt		Appelez-nous	-
20	3051511		Cup, Oven Light				$ 60.22
21	3017171		Insulation - Wrap		Appelez-nous	-
22	3017172		Insulation - Back		Appelez-nous	-
23	3051096		Support,oven Rear		Appelez-nous	-
24	08013945		Main Back		Appelez-nous	-
25	3018340		Cover-spark Module		Appelez-nous	-
26	3131046		Channel - Wire		Appelez-nous	-
27	5303018338		Spark Module		Appelez-nous	-
28	3017173		Vent Box		Appelez-nous	-
29	3017993		Burner - Box Bottom		Appelez-nous	-
30	5303131053		Shield-burner Box Rh		Appelez-nous	-
*30080	3018339		Reflector Plate		Appelez-nous	-
*30080	3934059		Anti-tip Kit		Appelez-nous	-
*30080	3131791		Clip,bodyside				$ 19.01
16A	3018285		Liner - Side Lh		Appelez-nous	-
16B	3018347		Liner - Top		Appelez-nous	-
16C	3018286		Liner-back		Appelez-nous	-
30A	5303131054		Shield-burner Box Lh		Appelez-nous	-
8A	5303204672		Oven Door Hinge-lh		Appelez-nous	-
