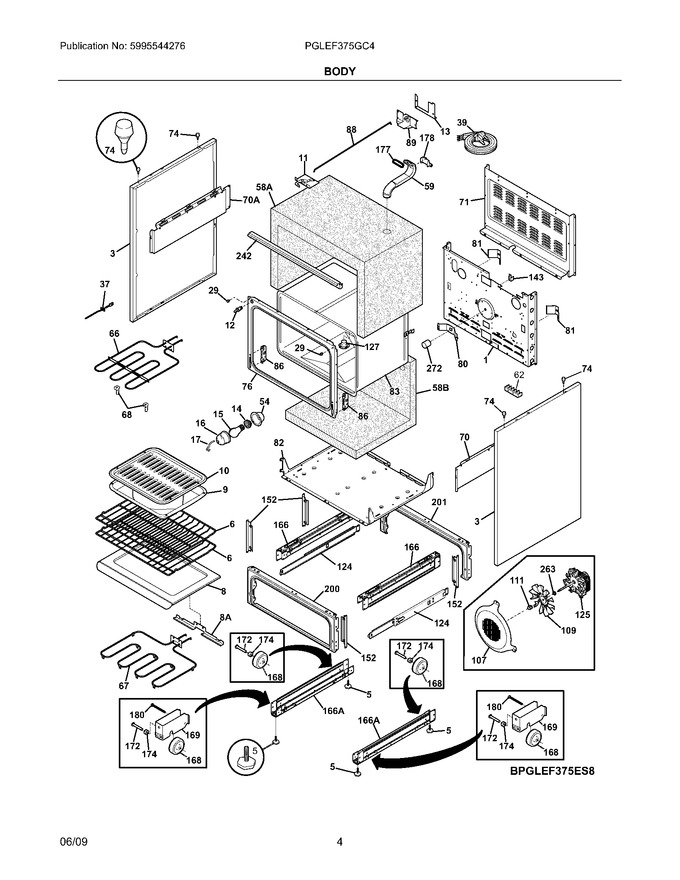

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259220		Back,main				$ 88.31
3	318299818		Panel,body Side ,black ,(2)				$ 75.76
5	318175510		Screw-leveling   (Replaces: 318175503)			Immediately	$ 24.26
6	318345207		Rack,oven				$ 69.20
8	318262001		Cover,element				$ 398.49
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Access0ry				$ 68.85
11	318382700		Latch,door				$ 86.31
12	316445501		Switch,oven Light ,door Frame				$ 90.01
13	318384511		Bracket,lock Motor		Appelez-nous	-
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
29	316517600		Spacer,oven Door				$ 12.05
54	318222400		Housing,oven Light				$ 58.22
59	318072574		Duct,oven Vent				$ 37.07
62	5303935061		Terminal Block Kit		Appelez-nous	-
68	5304403015		Support,hanger ,(4) ,broil Element				$ 35.04
70	318302710		Shield,insulation ,right ,(2)				$ 26.30
71	318300900		Panel,cover				$ 41.95
74	318141910		Bumper,bodyside ,(4)				$ 3.68
76	318056292		Front,oven				$ 131.67
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258707		Shield,insulation ,lower				$ 108.24
83	318261404		Liner,oven Assy				$ 280.88
86	318561100		Receptacle,hinge ,(2)				$ 21.23
88	318376511		Rod,latch		Appelez-nous	-
107	318219405		Cover,fan				$ 82.69
109	318398302		Fan Blade   (Replaces: 318398300)			Immediately	$ 29.11
111	316136600		Nut-fan Retainer   (Replaces: 318399800)			Immediately	$ 19.13
124	318330600		Glide,drawer ,outer/rh & Lh ,(2)				$ 77.97
127	318317100		Adapter Assembly,vent Tube ,w/converter				$ 75.13
143	318172904		Support,wire		Appelez-nous	-
152	318338500		Bracket,lateral Panel ,(4)				$ 8.14
166	318298410		Bracket,base Support ,(2)				$ 75.83
168	08011155		Roller				$ 6.88
169	318317200		Bracket,wheel Brake				$ 12.23
172	5304448824		Rivet,1.4`` X 1-5/8`` ,(4)				$ 1.91
174	318531600		Bearing,roller ,(4)				$ 1.56
177	318053810		Gasket,vent				$ 29.40
178	318301300		Bracket,vent Tube		Appelez-nous	-
180	318147800		Screw,socket Head Cap ,lock		Appelez-nous	-
200	318318400		Frame,drawer ,black ,front ,w/rollers				$ 66.20
201	318311600		Frame,drawer ,rear		Appelez-nous	-
242	318303105		Trim,center ,black				$ 44.10
263	316008401		Washer,flat   (Replaces: 316136500)				$ 11.34
272	318249409		Tube,protector		Appelez-nous	-
58A	318386100		Insulation,oven Wrapper		Appelez-nous	-
58B	318285083		Insulation,rear & Bottom ,oven Wrapper				$ 35.91
70A	318302711		Shield,insulation ,left ,(2)				$ 26.51
8A	318318600		Bracket,element ,hidden Bake				$ 37.17
F125	5304463302		Motor,fan   (Replaces: 318398200)			Immediately	$ 259.95
F166	318298400		Bracket,base Support ,(2)				$ 59.48
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F39	318113112		Cord,electric				$ 73.00
F66	318255605		Element,broil ,2750w   (Replaces: 318255600)			Immediately	$ 192.78
F67	318254906		Element,bake ,3400w ,8 Pass			Immediately	$ 259.36
F89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 52.34
FNI	318231863		Harness,wiring ,door Switch		Appelez-nous	-
FNI	318340944		Harness,wiring ,main		Appelez-nous	-
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
