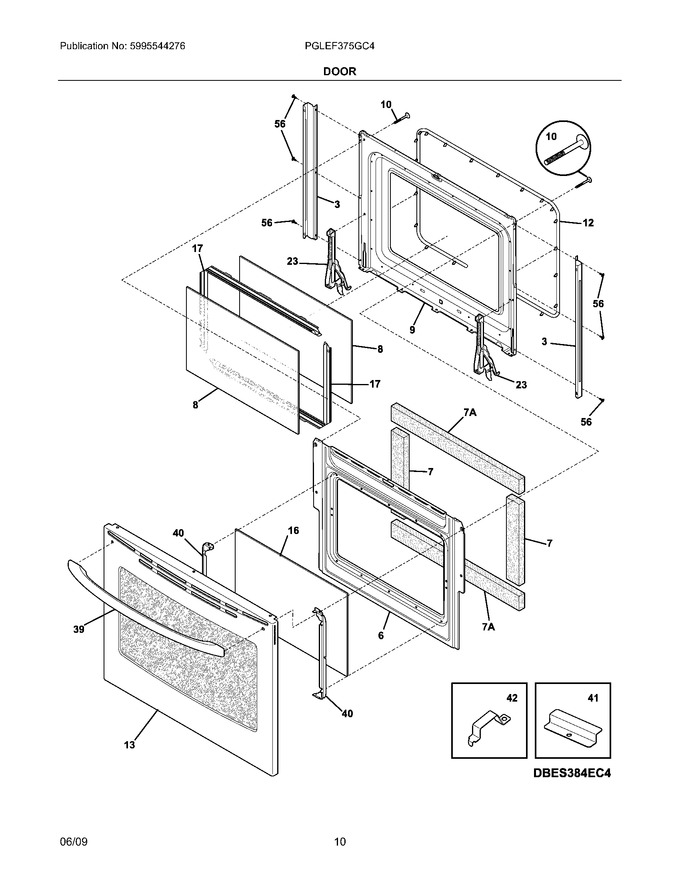

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318301403		Trim,oven Door ,black				$ 23.10
6	318260522		Baffle,door		Appelez-nous	-
7	318372017		Insulation,door ,(2)   (Replaces: 318372000)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318360108		Liner,oven Door ,upper				$ 123.14
10	5304452028		Screw,handle Mtg ,10-14 X 1/2 ,(2)				$ 11.02
12	318053120		Seal,oven Door ,lower   (Replaces: 318053130)			Immediately	$ 159.62
13	318187978		Stainless Panel,oven Door ,w/glass				$ 347.57
16	318212210		Glass,oven Door ,heat Barrier ,lower Door				$ 173.72
17	318264733		Spacer,glass ,lower ,(2)   (Replaces: 318264710)				$ 72.05
23	318567100		Hinge,upper ,oven Door ,(2)				$ 84.74
39	316270200		Handle,door ,black				$ 136.40
40	318242702		Bracket,glass Holder ,door ,(2)				$ 19.72
41	318370602		Bracket,glass Retainer ,(2)   (Replaces: 318370600)				$ 13.65
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
7A	318372016		Insulation,door ,(2)   (Replaces: 318372002)				$ 17.72
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
