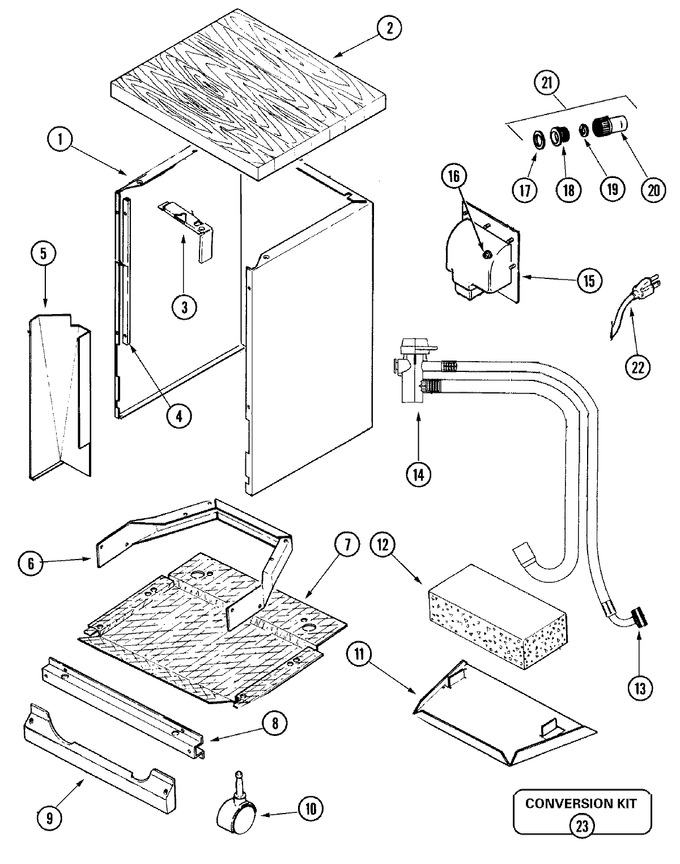

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 912624 | Screw | 10 |
|
- | ||||
| 1 | 99002319 | Clip, Cabinet | 10 |
|
- | ||||
| 1 | 903776 | Cabinet, Cmplt (wht) | 10 |
|
- | ||||
| 2 | Y913220 | Screw, W C Spacer | 10 |
|
- | ||||
| 2 | 99003573 | Top, Wood | 10 |
|
- | ||||
| 3 | 912621 | Screw | 10 |
|
- | ||||
| 3 | Y912842 | Support, Cabinet | 10 |
|
- | ||||
| 4 | WP1163283 | Screw (Replaces: 912625) | 10 |
|
$ 6.47 | ||||
| 4 | Y912848 | Trim, Cabinet | 10 |
|
- | ||||
| 5 | Y912880 | Barrier, Hose & Cord | 10 |
|
- | ||||
| 5 | Y913129 | Clip | 10 |
|
- | ||||
| 6 | WP489128 | Screw (Replaces: 912365) | 10 |
|
$ 9.79 | ||||
| 6 | Y912838 | Frame, Rear | 10 |
|
- | ||||
| 7 | 911917 | Fastener, Insulation | 10 |
|
- | ||||
| 7 | Y912843 | Bottom, Cabinet | 10 |
|
- | ||||
| 8 | WP6-912366 | Screw (Replaces: 912366) | 10 |
|
$ 7.29 | ||||
| 8 | WP489128 | Screw (Replaces: 912365) | 10 |
|
$ 9.79 | ||||
| 8 | Y912837 | Frame, Front | 10 |
|
- | ||||
| 9 | 99001525 | Panel, Toe (wht) | 10 |
|
- | ||||
| 9 | 99001867 | Screw | 10 |
|
- | ||||
| 10 | WP903297 | Twin Wheel Caster (Replaces: 903297) | 10 |
|
$ 11.11 | ||||
| 11 | Y912839 | Shelf, Counterweight | 10 |
|
- | ||||
| 11 | WP489128 | Screw (Replaces: 912365) | 10 |
|
$ 9.79 | ||||
| 12 | Y912840 | Strap, Hold Down | 10 |
|
- | ||||
| 12 | 912841 | Counterweight | 10 |
|
- | ||||
| 13 | Y013783 | Gasket, Inlet Hose | 10 |
|
$ 18.72 | ||||
| 14 | WP616099 | Clamp, Hose (1 3/8``) (Replaces: 99001774) | 10 |
|
Immediately | $ 7.03 | |||
| 14 | 911058 | Support, Hose | 10 |
|
- | ||||
| 14 | WP99001868 | Coupler & Hose Assy. (Replaces: 99001868) | 10 |
|
$ 238.88 | ||||
| 15 | Y912851 | Receptacle, Hose | 10 |
|
- | ||||
| 16 | 910854 | Palnut For Coupler Retainer | 10 |
|
- | ||||
| 17 | 910209 | Washer For Faucet Adapter | 10 |
|
$ 35.86 | ||||
| 18 | 910208 | Faucet Adapter | 10 |
|
$ 24.50 | ||||
| 19 | 910223 | Washer, Aerator | 10 |
|
$ 26.39 | ||||
| 20 | WPW10254672 | Aerator (Replaces: 900084) | 10 |
|
Immediately | $ 49.54 | |||
| 21 | 30168LF | Aerator & Plug Assy (Replaces: 900159) | 10 |
|
Immediately | $ 10.94 | |||
| 22 | 911532 | Strain Relief Grommet | 10 |
|
- | ||||
| 22 | 901115 | Power Cord W/connecting Nut | 10 |
|
$ 42.68 | ||||
| 22 | 911445 | Wire Connector | 10 |
|
- | ||||
| 22 | 912878 | Grommet----na | 10 |
|
- | ||||
| 23 | 99001998 | Kit, Conversion (dc-db) | 10 |
|
- |
