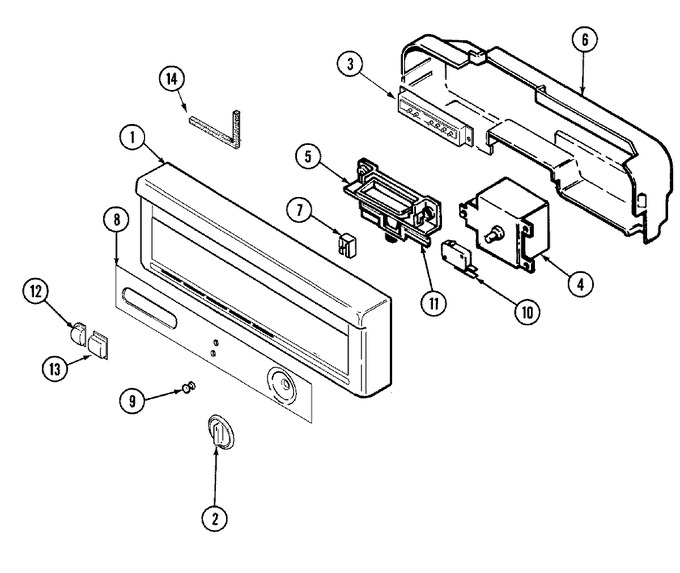

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
1	99001596		Panel, Control (wht)	10	Appelez-nous	-
1	99002559		Felt, Control Panel (side)	10	Appelez-nous	-
3	99001611		Switch, Control (6-button)	10	Appelez-nous	-
4	99002431		Timer	10			$ 188.85
4	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
5	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
5	WP99002240		Holder, Switch   (Replaces: 99002240)	10			$ 63.31
6	99001588		Barrier, Control Panel	10	Appelez-nous	-
7	903115		Lock Light	10			$ 5.70
8	99002959		Facia (wht)	10	Appelez-nous	-
9	Y912696		Lens, Indicator Light	10			$ 5.02
10	WP99002207		Switch, Door   (Replaces: 99002207)	10			$ 30.87
11	W10834433		Handle, Latch (wht)   (Replaces: 99002085)	10		Immediately	$ 108.37
12	99001506		Button, Switch (end-wht)	10	Appelez-nous	-
13	99001503		Button, Switch (mdl-wht)	10	Appelez-nous	-
14	Y913177		Seal, Vent Outlet	10	Appelez-nous	-
14	Y913116		Liner, Vent	10	Appelez-nous	-
15	99002495		Harness, Wire	10	Appelez-nous	-
16	99002394		Manual, Use & Care (tri)	10	Appelez-nous	-
17	16010622		Manual, Service Maytag Perform	10	Appelez-nous	-
