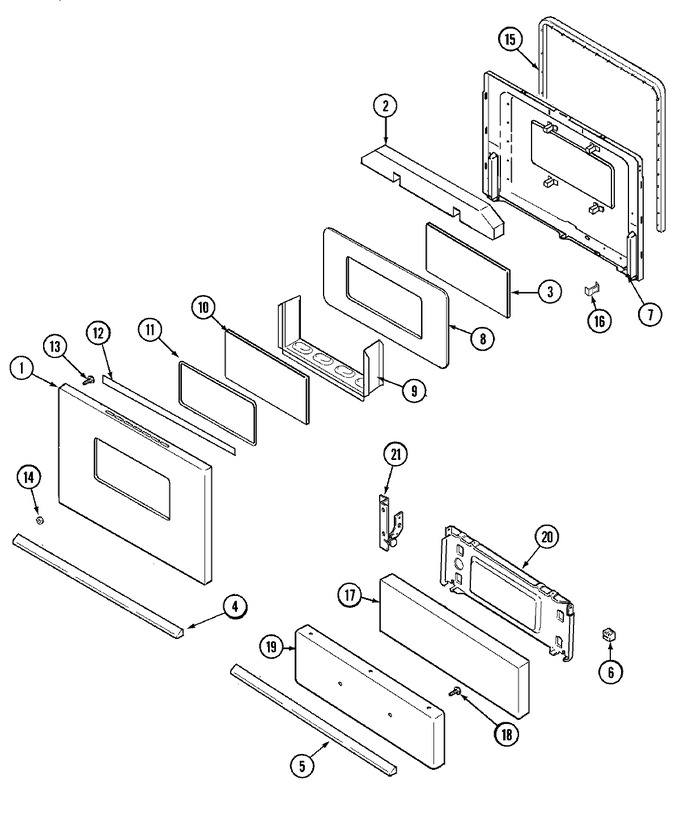

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74005223		Panel, Door (wht)	10	Appelez-nous	-
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
2	74002458		Insulation, Door	10	Appelez-nous	-
3	74002459		Glass, Door (inner)	10	Appelez-nous	-
4	2411F003-71		Handle, Door (wht)	10	Appelez-nous	-
5	2411F003-71		Handle, Door (wht)	10	Appelez-nous	-
6	8016P015-60		Glide	10			$ 5.65
7	74005097		Lining, Door	10	Appelez-nous	-
8	74002461		Baffle, Door	10	Appelez-nous	-
8	7101P209-60		Screw	10	Appelez-nous	-
9	74002462		Support, Outer Glass	10	Appelez-nous	-
10	74002464		Glass, Door (outer-wht)	10	Appelez-nous	-
11	7201P017-60		Gasket, Window	10			$ 52.69
12	8270P090-60		Tape, Foil (3`` Wide)	10	Appelez-nous	-
13	WP3387230		Screw   (Replaces: 74002483)	10		Immediately	$ 7.69
14	WP74005058		Spacer, Handle (wht)   (Replaces: 8010P089-60)	10			$ 7.05
15	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	10		Immediately	$ 56.83
16	7112P034-60		Clip, Door	10	Appelez-nous	-
17	74001814		Insulation, Broiler Drawer	10	Appelez-nous	-
18	74002481		Screw	10			$ 5.82
19	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
19	74001729		Panel, Drawer (wht)	10	Appelez-nous	-
20	74002397		Lining, Drawer	10	Appelez-nous	-
21	74002398		Hinge, Drawer	10	Appelez-nous	-
21	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
