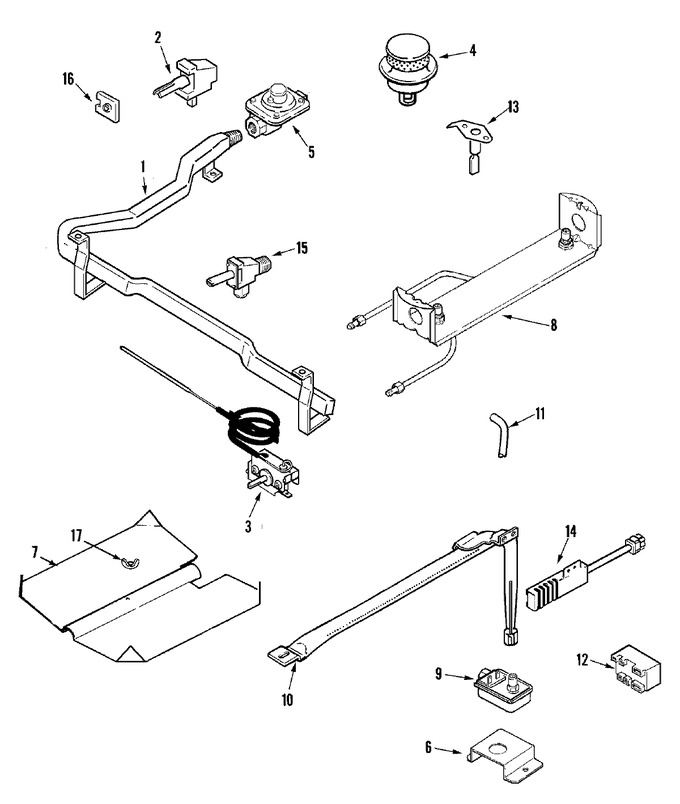

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74003850		Pipe, Manifold	10	Appelez-nous	-
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
2	74002532		Valve, Burner	10	Appelez-nous	-
2	74003925		Valve, Burner	10			$ 110.58
2	74002433		Screw, Valve	10	Appelez-nous	-
3	7404P096-60		Thermostat	10	Appelez-nous	-
3	7101P280-60		Screw W/washer (blk)	10	Appelez-nous	-
4	WP3412D024-09		Burner, Sealed (blk)   (Replaces: 74003963)	10		Immediately	$ 92.69
5	7510P049-60		Regulator, Pressure	10	Appelez-nous	-
6	74005051		Bracket, Oven Valve	10	Appelez-nous	-
6	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	74002393		Baffle, Oven Burner	10	Appelez-nous	-
8	5187D028-60		Orifice Fitting Assembly (lt)	10	Appelez-nous	-
8	5187D031-60		Orifice Fitting Assembly (rt)	10	Appelez-nous	-
9	74005329		Valve, Oven	10	Appelez-nous	-
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74002434		Burner, Oven	10			$ 94.06
11	1555251		Nut, Loxit (3/8``)	10	Appelez-nous	-
11	74005356		Tubing, Valve (3/8``)	10	Appelez-nous	-
12	8215557		Module, Spark (4+0)   (Replaces: 74004283)	10		Immediately	$ 124.99
13	74004053		Igniter, Top Burner	10		Immediately	$ 24.25
14	74007498		Igniter, Oven   (Replaces: 7432P075-60)	10		Immediately	$ 78.40
14	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	10			$ 4.29
15	74006283		Valve, Shut Off	12	Appelez-nous	-
15	74002389		Valve, Shut Off	10	Appelez-nous	-
15	71003231		Screw, Valve	10	Appelez-nous	-
16	74002533		Switch, Igniter	10	Appelez-nous	-
16	WP7403P287-60		Switch, Igniter   (Replaces: 7403P287-60)	10			$ 130.75
17	7103P030-60		Nut, Wing	10			$ 6.37
18	12001209		Kit, Wire (7pc 72``ea.)	10	Appelez-nous	-
18	74005313		Harness, Spark (4-or)	10	Appelez-nous	-
