SELECT A DIAGRAM

01 - Electrical Components

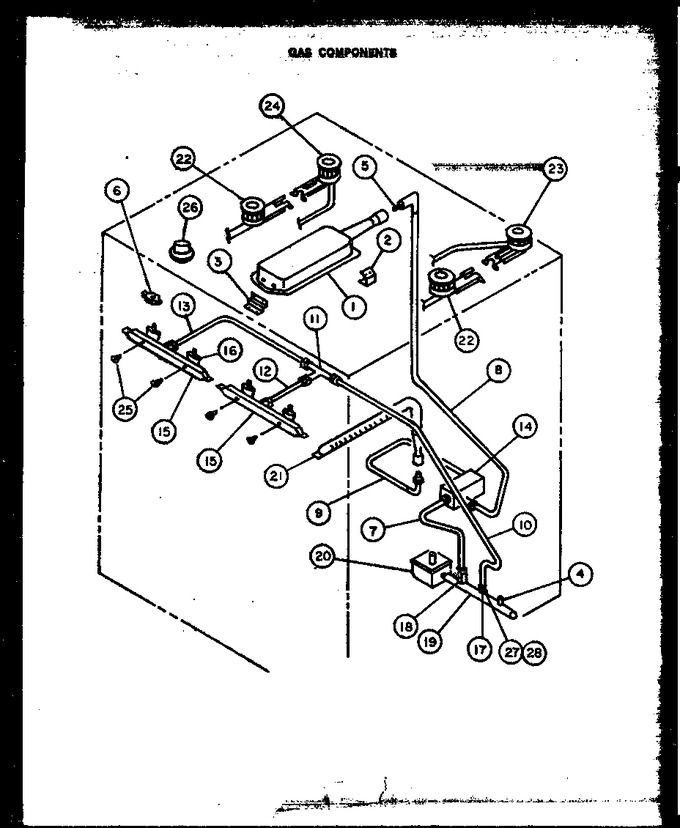

02 - Gas Components


03 - Lower Oven Cabinet Assy


04 - Lower Oven Electrical Components


05 - Oven Door Parts


06 - Page 1


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0063779		Sub 60691, Broil Burner Assy		Appelez-nous	-
2	0063785		Bracket, Ignitor		Appelez-nous	-
3	0062865		Bracket, Mtg., Br. Brnr.		Appelez-nous	-
4	0042415		Pipe Plug 1/8-27 Npt		Appelez-nous	-
5	Y0063061		Orifice, No.58 Lp		Appelez-nous	-
5	Y0063060		Orifice Spud, Nat. Gas No.50		Appelez-nous	-
6	Y0061440		Spark Switch		Appelez-nous	-
7	Y0062742		Tubing, 3/8`` Od, 10 Ft.		Appelez-nous	-
8	0062434		Assy., Orifice And Tubing		Appelez-nous	-
9	0062433		Assy., Hood And Tubing		Appelez-nous	-
10	0061439		Sub 90761, Tubing 3/8		Appelez-nous	-
11	0061467		Inlet, Tee		Appelez-nous	-
12	Y0061438		Tubing, 3/8`` Od, 10 Ft.		Appelez-nous	-
13	0061437		Sub 90761, Tubing		Appelez-nous	-
14	Y0063143		Valve, Gas		Appelez-nous	-
15	0061468		Sub 61139, Manifold		Appelez-nous	-
16	Y0061466		Valve, Top Burner		Appelez-nous	-
17	0062760		Fitting, Compression		Appelez-nous	-
18	Y0062749		Valve, Shut-off		Appelez-nous	-
19	0062762		Inlet		Appelez-nous	-
20	Y0063684		Regulator-5``/10`` Side Inlet		Appelez-nous	-
21	Y0063709		Oven Burner		Appelez-nous	-
22	Y0063147		Top Burner Front		Appelez-nous	-
23	Y0063146		Top Burner Rr		Appelez-nous	-
24	Y0063145		Top Burner Lr		Appelez-nous	-
25	Y0061441		Surface Valve Bolt& Gasket		Appelez-nous	-
26	0061475		Knob, Top Burner		Appelez-nous	-
26	0061474		Knob, Selector Assy		Appelez-nous	-
26	0061473		Knob, Oven Control		Appelez-nous	-
27	Y0092580		3/8`` Compression Nut		Appelez-nous	-
28	Y0092579		3/8`` Compression Sleeve		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
