SELECT A DIAGRAM

01 - Electrical Components


02 - Gas Components


03 - Lower Oven Cabinet Assy


04 - Lower Oven Electrical Components

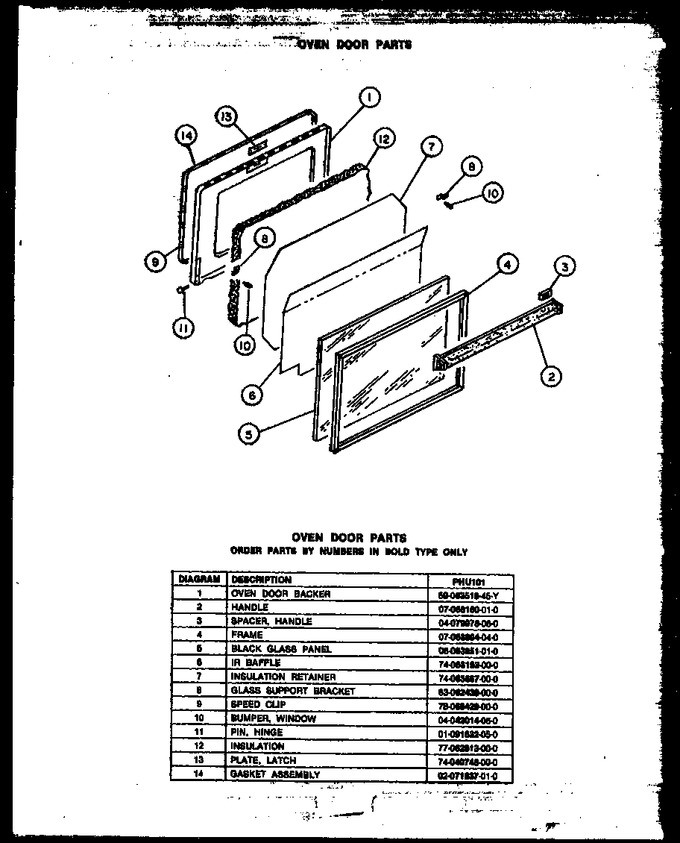

05 - Oven Door Parts


06 - Page 1


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0061722		Sub 60677, Storage Drawer		Appelez-nous	-
1	0063516		Oven Door Backer		Appelez-nous	-
2	0068150		Handle, Door		Appelez-nous	-
2	0063500		Panel, Drawer		Appelez-nous	-
3	0061930		Sub 57441cg, Drawer Panel		Appelez-nous	-
3	Y0079978		Spacer Door Handle		Appelez-nous	-
4	0063804		Frame, Door, Black		Appelez-nous	-
4	Y0063501		Panel, Black Glass		Appelez-nous	-
5	0063651		Panel, Oven Door Glass		Appelez-nous	-
5	0063473		Sub 59498, Door Frame, Black		Appelez-nous	-
6	Y0063661		Bumper, Oven Door		Appelez-nous	-
6	0063193		Plate, Air Baffle		Appelez-nous	-
7	0063657		Plate, Insulation		Appelez-nous	-
7	0092582		Plastic Glider		Appelez-nous	-
8	Y0062439		Support Bracket, Glass		Appelez-nous	-
9	0068429		Clip, Tinnerman		Appelez-nous	-
10	0042014		Cork Bumper		Appelez-nous	-
11	0091632		Rivet		Appelez-nous	-
12	Y0062613		Insulation,wrapper		Appelez-nous	-
13	Y0040748		Sub 52039, Latch Plate		Appelez-nous	-
14	0071637		Dr. Gasket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
