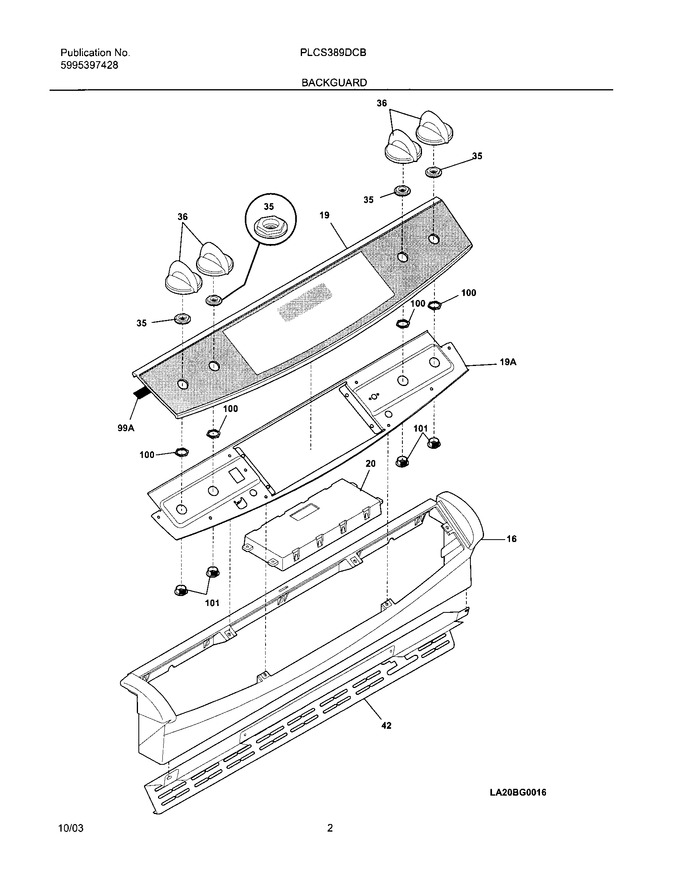

03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318235001		Console,assy. ,black ,w/ End Caps		Appelez-nous	-
19	318239701		Panel,control Assy. ,black/stainless ,w/ Membrane				$ 696.41
35	318233710		Retainer,control Panel ,black		Appelez-nous	-
36	318229311		Knob,control ,black				$ 45.47
42	318224301		Trim,vent ,black ,bottom		Appelez-nous	-
100	318233800		Nut,hex				$ 63.53
101	318233400		Bushing,retainer				$ 43.21
19A	318224404		Panel,control Mtg.				$ 72.50
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F20	316272206		Clock/timer,electronic ,es500/es550				$ 416.54
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
