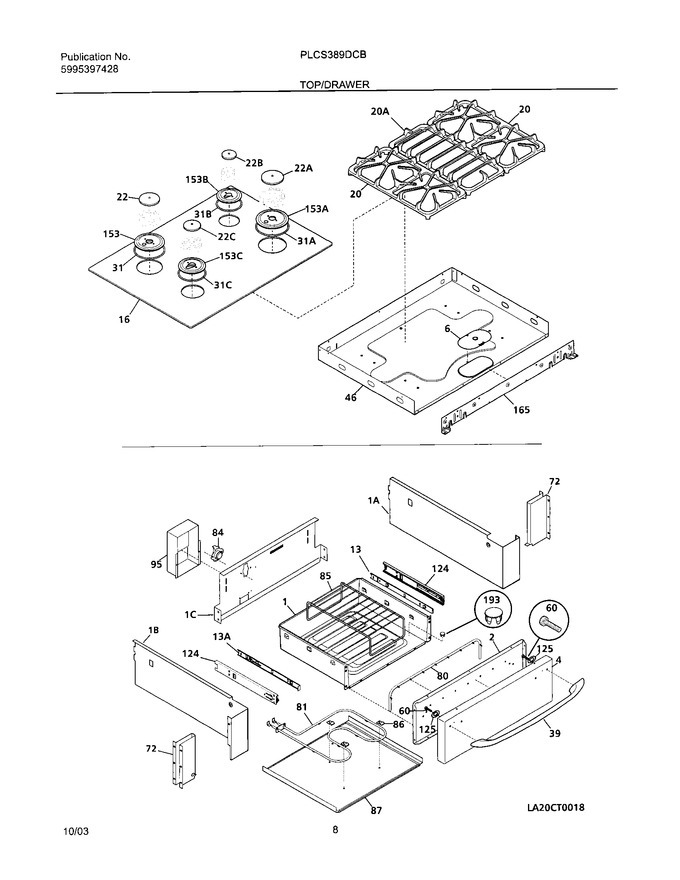

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318142500		Drawer,warmer		Appelez-nous	-
2	318108025		Liner,drawer		Appelez-nous	-
4	318107909		Panel,drawer ,stainless		Appelez-nous	-
6	318229900		Cover,wiring		Appelez-nous	-
13	318259507		Glide-warmer,inner Rh   (Replaces: 316105602)			Immediately	$ 69.01
16	318223700		Main Top,assy. ,glass ,black				$ 851.29
22	316242800		Cap,11k Burner ,black				$ 132.41
31	316242001		Seal,11k Burner				$ 23.06
39	316246105		Handle,door/drawer ,stainless   (Replaces: 318219800)				$ 145.31
46	318225401		Box,burner		Appelez-nous	-
60	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
72	318113403		Bracket,slide ,(2)		Appelez-nous	-
80	318054310		Gasket,warmer Drawer				$ 59.85
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	318121503		Base-warmer		Appelez-nous	-
95	318143702		Cover,wire		Appelez-nous	-
124	316105501		Glide,warmer Drawer ,outer/rh & Lh ,(2)   (Replaces: 316105500)				$ 90.72
125	134716700		Washer   (Replaces: 3201909)				$ 2.12
153	316241701		Skirt,11k Burner ,black				$ 80.00
165	318227500		Plate,mounting				$ 41.11
193	5303325173		Cap-plug		Appelez-nous	-
13A	318259507		Glide,warmer ,inner Lh   (Replaces: 316105601)			Immediately	$ 69.01
1A	318143335		Deflector,warmer Drawer ,rh		Appelez-nous	-
1B	318143334		Deflector,warmer Drawer ,lh		Appelez-nous	-
1C	318143203		Deflector,warmer Drawer ,rear		Appelez-nous	-
20A	318231500		Grate,black ,center				$ 193.45
22A	316219800		Cap,14k Burner ,black				$ 163.17
22B	316206500		Cap,5k Burner ,black				$ 92.66
22C	316242900		Cap,9.5k Burner ,black				$ 51.61
31A	316242000		Seal,14k Burner				$ 73.71
31B	316242003		Seal,5k Burner				$ 15.17
31C	316242002		Seal,9.5k Burner				$ 25.02
F153	316264901		Skirt,14k Burner ,black				$ 85.39
F153	316241901		Skirt,5k Burner ,black				$ 82.32
F153	316241801		Skirt,9.5k Burner ,black				$ 79.01
F20	318231400		Grate,black ,(2)				$ 359.21
F81	318255301		Element,warmer Drawer   (Replaces: 318112400)				$ 105.42
F84	318005103		Thermostat,safety				$ 159.51
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
