SELECT A DIAGRAM

01 - Cover

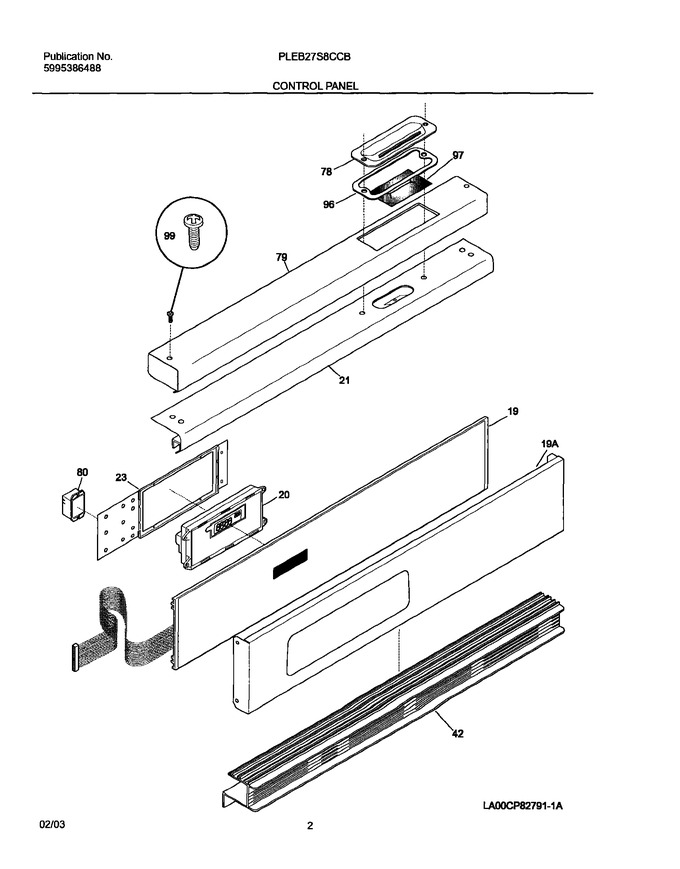

03 - Control Panel


05 - Body


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318030215		Panel,control ,black ,back		Appelez-nous	-
21	318028330		Trim,canopy		Appelez-nous	-
23	318111602		Bracket,clock & Relay		Appelez-nous	-
42	318027310		Trim,vent		Appelez-nous	-
78	318037200		Cover,oven Vent ,stainless		Appelez-nous	-
79	318029602		Trim-top, Stainless Steel		Appelez-nous	-
96	316037700		Seal,vent Cover		Appelez-nous	-
97	316037800		Tape,vent Cover		Appelez-nous	-
99	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
19A	318192802		Panel,control ,stainless ,front		Appelez-nous	-
F20	318010700CP		Clock/timer, Eoc   (Replaces: 318010700)		Appelez-nous	-
F80	318111501		Relay,convection ,oven Light ,(2)				$ 85.10
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
NI	5303311528		Screw,oval Hd Sq Dr ,6-20ab X 0.625 ,black		Appelez-nous	-
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	3201861		Screw,6 X 0.375				$ 0.76
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18

    View Diagram in Separate Window       Print Part List
