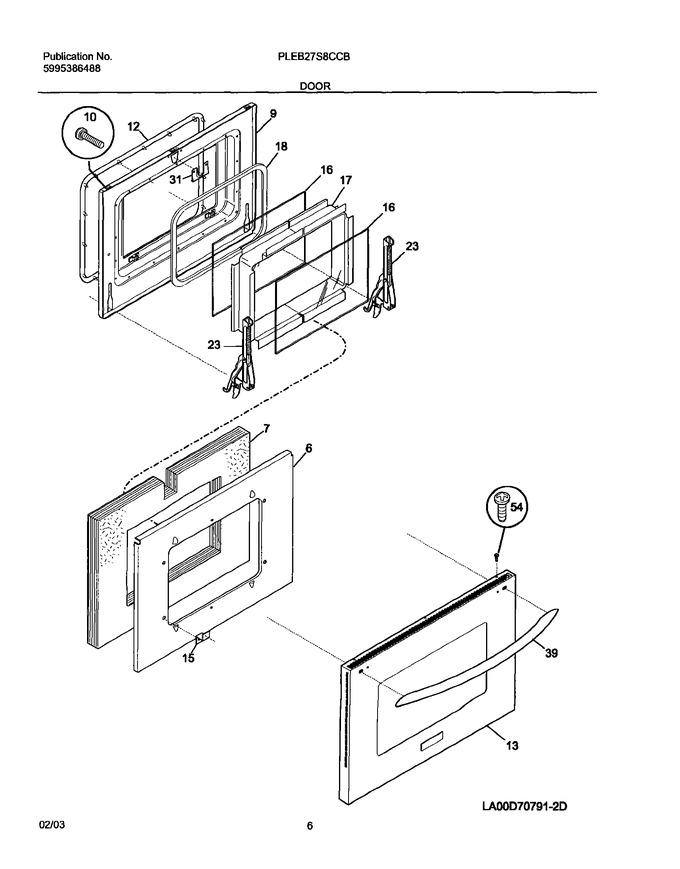

07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318073502		Shield,air Wash				$ 23.68
7	318133751		Insulation,oven Door		Appelez-nous	-
9	318156705		Liner,oven Door		Appelez-nous	-
10	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
12	318053100		Seal-oven Door				$ 317.89
13	318187932		Stainless Panel,oven Door ,upper Oven ,w/glass & Nmplt		Appelez-nous	-
15	318172904		Stiffener,glass		Appelez-nous	-
16	318042300		Glass-oven Door, Heat Barrier, (2)				$ 298.46
17	318042000		Spacer-glass		Appelez-nous	-
18	318053000		Seal-rope		Appelez-nous	-
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	5303320452		Hinge,oven Door		Appelez-nous	-
31	318065102		Latch-door				$ 58.81
39	318197902		Handle,oven Door ,stainless		Appelez-nous	-
54	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
59	3202113		Plug,button		Appelez-nous	-
NI	5303300414		Spacer, Cork & Rubber				$ 13.18
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
NI	5303323277		Screw (8-18x13/32)				$ 8.66
