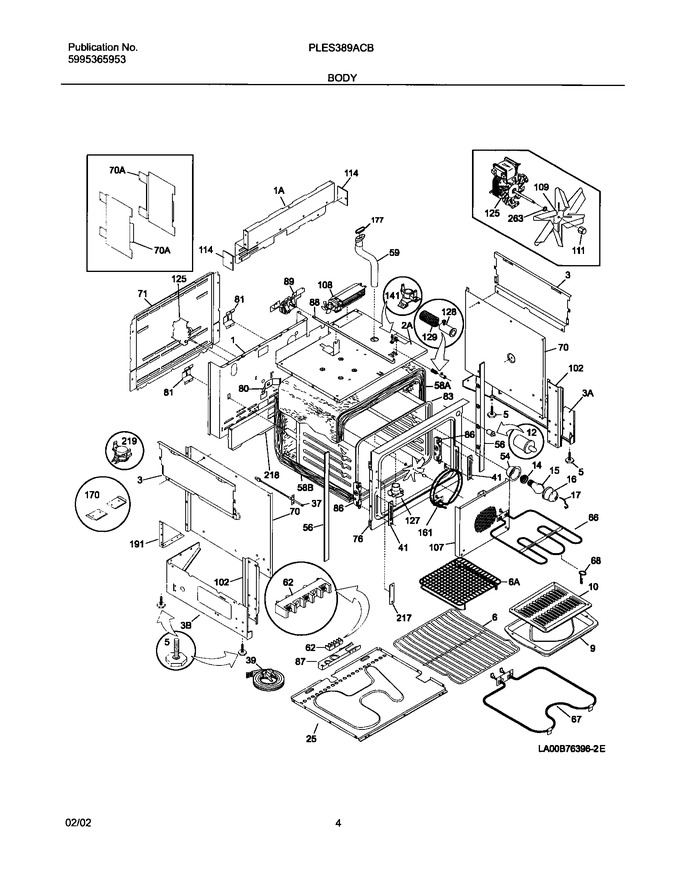

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318066402		Panel,main Back		Appelez-nous	-
3	318159800		Panel,body Side ,upper		Appelez-nous	-
5	318175510		Screw-leveling   (Replaces: 318175503)			Immediately	$ 24.26
6	318345205		Rack,oven   (Replaces: 318025304)			Immediately	$ 138.78
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
16	5304524341		Cover,oven Light ,glass   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
25	318179108		Shield-heat,lower		Appelez-nous	-
41	5303310526		Cover-hinge Cutout				$ 83.00
54	5303310514		Housing-oven Light		Appelez-nous	-
56	318002611		Trim,oven ,black ,front		Appelez-nous	-
59	318072502		Tube-oven Vent		Appelez-nous	-
66	318255605		Element,broil ,2750 W   (Replaces: 5303310513)			Immediately	$ 192.78
68	5304403015		Support,element Hanger				$ 35.04
70	318194400		Shield,insulation				$ 33.03
71	5303310515		Panel,wiring Cover ,rear				$ 368.97
76	318124100		Front-oven		Appelez-nous	-
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
83	318089609		Liner,oven		Appelez-nous	-
86	5303310524		Receptacle,hinge		Appelez-nous	-
87	318111803		Plate,mounting		Appelez-nous	-
88	318118904		Rod,latch				$ 52.97
102	5303311142		Support-oven Front		Appelez-nous	-
107	318119600		Cover-fan		Appelez-nous	-
109	318398302		Blade,fan   (Replaces: 316136400)			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
114	318175100		Plate-filler		Appelez-nous	-
127	318317100		Adapter,vent Tube ,with Converter   (Replaces: 5303310542)				$ 75.13
128	5303311163		Bushing		Appelez-nous	-
129	5303311164		Spring				$ 18.95
170	5304405244		Anti-tip & Accessories				$ 44.73
177	5303324040		Gasket-vent		Appelez-nous	-
191	5303304030		Bracket,angle ,corner		Appelez-nous	-
217	316042300		Plate,warning		Appelez-nous	-
218	318123901		Deflector		Appelez-nous	-
263	316008401		Washer,fan Motor   (Replaces: 316136500)				$ 11.34
1A	318070910		Panel,main Back ,upper		Appelez-nous	-
2A	318108600		Shield,oven Top		Appelez-nous	-
3A	318160004		Panel-lower Side Rh				$ 167.69
3B	318160005		Panel-lower Side Lh		Appelez-nous	-
58A	318133744		Insulation,oven Wrapper		Appelez-nous	-
58B	318133769		Insulation,oven Back		Appelez-nous	-
6A	5303311206		Shelf,broiler Pan		Appelez-nous	-
70A	318199801		Deflector		Appelez-nous	-
F108	318073012		Motor,blower		Appelez-nous	-
F12	318089916		Switch,light   (Replaces: 318089911)				$ 68.04
F125	316234601		Motor-fan				$ 454.70
F14	316116400		Receptacle, Oven Light   (Replaces: 5308011085)			Immediately	$ 56.10
F141	5303284446		Switch, Thermal Cutout		Appelez-nous	-
F15	3201908		Light,oven		Appelez-nous	-
F161	318050710		Element,convection ,2500 W		Appelez-nous	-
F219	318003400		Thermostat-safety				$ 237.43
F219	318005000		Thermostat,safety ,for Fan		Appelez-nous	-
F37	316217002		Probe,oven Temp   (Replaces: 318198500)			Immediately	$ 61.23
F62	5304409888		Terminal Block   (Replaces: 5303310518)			Immediately	$ 26.69
F67	318255006		Element,bake ,3000 W   (Replaces: 5303310512)			Immediately	$ 185.14
F89	318095957		Motor,latch Assy ,w/brkt & Switch   (Replaces: 318095937)			Immediately	$ 127.75
NI	5303307980		Screw,8-32 X 0.437			Immediately	$ 14.18
NI	318120711		Switch				$ 87.68
NI	5303310517		Plate,ground Strap		Appelez-nous	-
NI	316205500		Nut, Hex, 10-32   (Replaces: 5303308427)				$ 11.34
NI	5303311207		Tube, Protector		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
