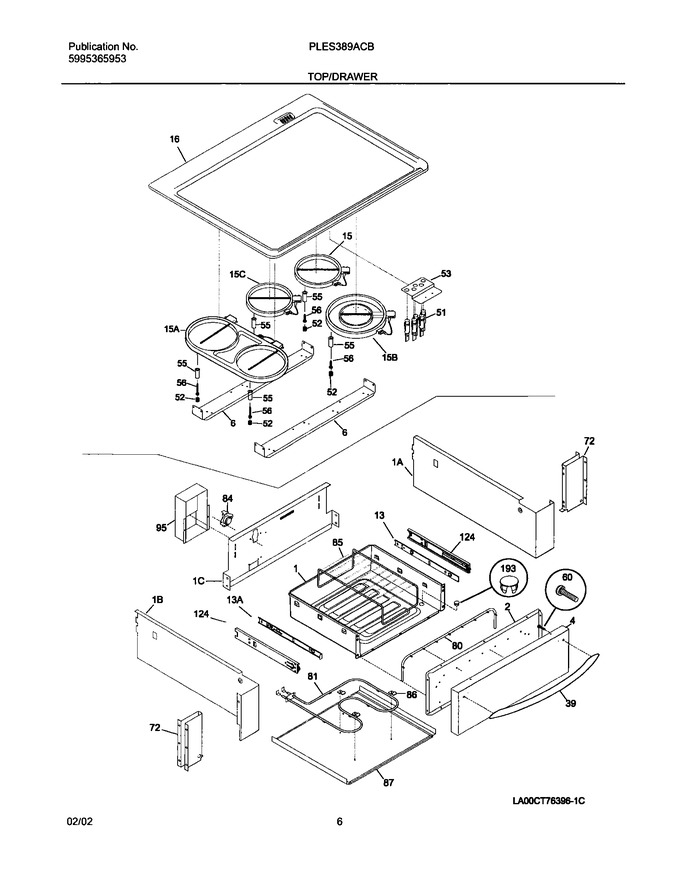

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318142500		Drawer,warmer		Appelez-nous	-
2	318108025		Liner,drawer		Appelez-nous	-
4	318107903		Panel,drawer ,stainless		Appelez-nous	-
6	318111103		Support,element ,(2)		Appelez-nous	-
13	318259507		Glide-warmer,inner Rh   (Replaces: 316105602)			Immediately	$ 69.01
16	318079551		Main Top,glass ,black		Appelez-nous	-
39	316246105		Handle,door/drawer ,stainless   (Replaces: 316246100)				$ 145.31
52	5303317177		Spring-element Mtg				$ 12.74
53	318125931		Bracket,indicator Light ,hot Surface		Appelez-nous	-
55	5303317178		Spacer-element				$ 2.42
56	5303317179		Screw-element, 6 X 3/4				$ 2.42
60	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
72	318113402		Bracket-slide,(2)		Appelez-nous	-
80	318054300		Gasket,warmer Drawer		Appelez-nous	-
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	318121503		Base-warmer		Appelez-nous	-
95	318143702		Cover,wire		Appelez-nous	-
124	316105501		Glide,warmer Drawer ,outer/rh & Lh ,(2)   (Replaces: 316105500)				$ 90.72
193	5304400796		Plug		Appelez-nous	-
13A	318259507		Glide,warmer ,inner Lh   (Replaces: 316105601)			Immediately	$ 69.01
1A	318143331		Deflector-warmer,right Side		Appelez-nous	-
1B	318143330		Deflector-warmer,left Side		Appelez-nous	-
1C	318143203		Deflector,warmer Drawer ,rear		Appelez-nous	-
F15	318198817		Element,surface ,6`` ,1200 W ,radiant   (Replaces: 316010205)			Immediately	$ 192.78
F15A	318258201		Element,bridge   (Replaces: 318177900)			Immediately	$ 480.54
F15B	316555800		Element,dual ,9``/6`` ,surface ,2100w/700w,radiant   (Replaces: 316224300)			Immediately	$ 138.90
F15C	316098202		Element,warmer Zone ,100w				$ 473.08
F51	318044827		Light,indicator ,clear   (Replaces: 318044822)			Immediately	$ 60.25
F81	318255301		Element,warmer Drawer   (Replaces: 318112400)				$ 105.42
F84	318005103		Thermostat,safety				$ 159.51
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	5304400795		Bushing,snap-in ,nylon		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
