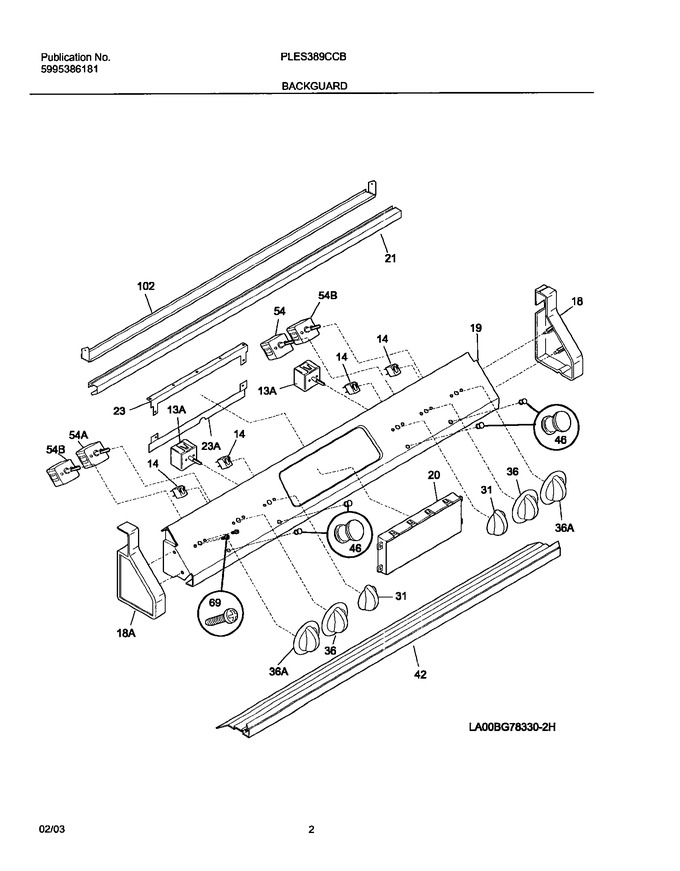

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	318039312		End Cap,black ,rh		Appelez-nous	-
19	318220507		Panel,control Mtg. ,stainless		Appelez-nous	-
21	318027803		Trim,backguard ,black ,top		Appelez-nous	-
23	318015042		Bracket,clock Mtg ,upper		Appelez-nous	-
31	318197601		Knob,warmer ,black		Appelez-nous	-
36	318196634		Knob,control ,black				$ 64.50
42	318106927		Trim,backguard ,black ,bottom				$ 188.06
46	318228310		Lens,indicator Light   (Replaces: 5303297274)			Immediately	$ 22.91
69	5303288565		Screw,switch Mtg. ,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
102	318055601		Bracket-mounting				$ 34.13
18A	318039313		End Cap,black ,lh		Appelez-nous	-
23A	318015043		Bracket,clock Mtg ,lower		Appelez-nous	-
36A	318196631		Knob,dual Control ,black			Immediately	$ 56.88
F13A	5304508926		Switch,infinite ,drawer/zone ,warmer   (Replaces: 316095500)			Immediately	$ 84.18
F14	318076700		Light,indicator ,125v		Appelez-nous	-
F20	318183620		Clock/timer,electronic ,black				$ 858.64
F54	318293820		Switch,surface Unit ,small   (Replaces: 318220006)				$ 83.62
F54A	318220008		Switch,surface Unit		Appelez-nous	-
F54B	318191002		Switch,infinite ,dual			Immediately	$ 74.75
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	3201861		Screw,6 X 0.375				$ 0.76
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	318214601		Overlay,clock ,black   (Replaces: 316243301)				$ 57.41
