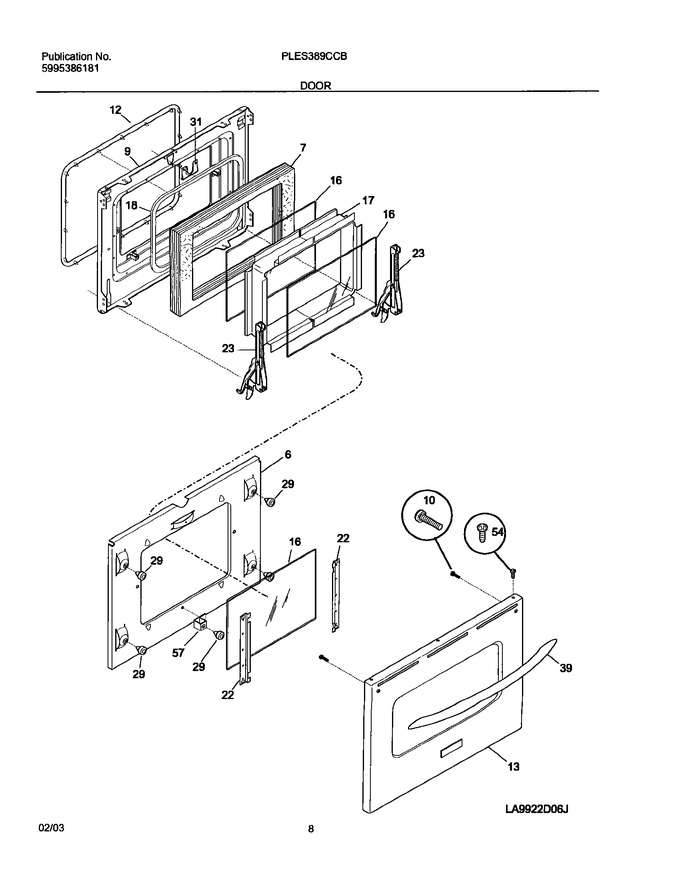

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318056802		Shield-insulation		Appelez-nous	-
7	318133754		Insulation,oven Door		Appelez-nous	-
9	318157011		Liner,door		Appelez-nous	-
10	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
12	318053103		Gasket,oven Door Seal			Immediately	$ 150.03
13	318187917		Stainless Panel,oven Door ,w/ Glass/nmplt		Appelez-nous	-
16	318041603		Panel,glass ,inner Oven Door				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318053001		Seal-window		Appelez-nous	-
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	5303310828		Hinge-oven Door, (2)		Appelez-nous	-
29	318147410		Bumper,base		Appelez-nous	-
31	5303310536		Latch,oven Door				$ 30.66
39	316246105		Handle,door/drawer ,stainless   (Replaces: 318219800)				$ 145.31
54	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
57	318172902		Stiffener Glass				$ 1.47
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
