Diagram for 02 - Control Panel
02 - Control Panel

Diagram for 03 - Splasher Control
03 - Splasher Control

Diagram for 04 - Cooktop Parts
04 - Cooktop Parts

Diagram for 05 - Upper Oven Door Parts
05 - Upper Oven Door Parts

Diagram for 06 - Lower Oven Door Parts
06 - Lower Oven Door Parts

Diagram for 07 - Broiler Parts
07 - Broiler Parts

Diagram for 08 - Upper Body Parts
08 - Upper Body Parts

Diagram for 09 - Lower Body Parts
09 - Lower Body Parts

Diagram for 10 - Drawer Parts
10 - Drawer Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 08011716 Trim-frame Appelez-nous -
2 3051496 Glass-control Pnl Appelez-nous -
3 08014778 Panel-control Mtg Appelez-nous -
4 3206430 Switch-top Element 2100w (2) Appelez-nous -
5 5303051315 Switch-selector 6 Pos Appelez-nous -
6 5303202782 Thermostat-oven Upper Appelez-nous -
7 3051507 Clock Appelez-nous -
8 5303208334 Knob-clock (3) Appelez-nous -
9 5308037896 Indicator Light Special Order $ 39.75

10 5308010401 Bushing-control Panel Glass Appelez-nous -
11 5303091393 Knob-switch S/u (4) Appelez-nous -
11A 5303091392 Knob-selector 6 Pos Appelez-nous -
11B 5303051442 Knob-thermostat Lwr Appelez-nous -
11C 3017352 Knob-thermostat Upper Appelez-nous -
2A 08011713 Fastener-clock (4) (non-illustrated) Appelez-nous -
4A 3206431 Switch-top Element 1250w (2) Appelez-nous -
6A 5303051320 Thermostat-oven Lower Appelez-nous -
9A 5303091462 Ind Light-250v (2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

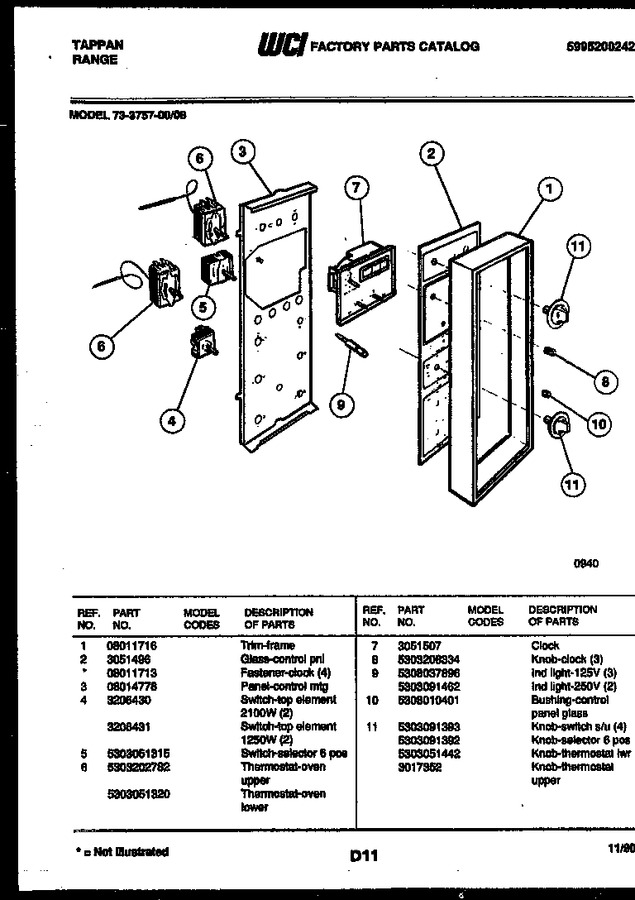

Diagram for 73-3757-66-08
