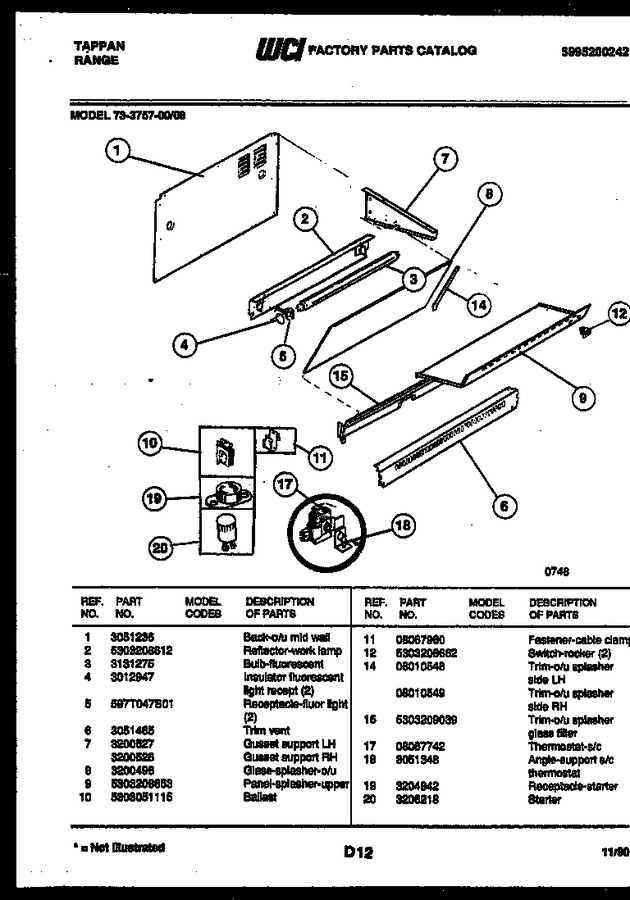

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3051236		Back-o/u Mid Wall		Appelez-nous	-
2	5303208612		Reflector-work Lamp		Appelez-nous	-
3	3131275		Bulb-fluorescent				$ 49.40
4	3012947		Insulator Fluorescent Light Recept (2)		Appelez-nous	-
5	597T047S01		Receptacle-fluor Light (2)		Appelez-nous	-
6	3051465		Trim Vent		Appelez-nous	-
7	3200527		Gusset Support Lh		Appelez-nous	-
8	3200496		Glass-splasher-o/u		Appelez-nous	-
9	5303208653		Panel-splasher Upper		Appelez-nous	-
10	5303051115		Ballast		Appelez-nous	-
11	08067960		Fastener-cable Clamp		Appelez-nous	-
12	5303208662		Switch-rocker (2)		Appelez-nous	-
14	08010548		Trim-o/u Splasher Side Lh		Appelez-nous	-
15	5303209039		Trim-o/u Splasher Glass Filler		Appelez-nous	-
17	08067742		Thermostat-s/c		Appelez-nous	-
18	3051348		Angle-support S/c Thermostat		Appelez-nous	-
19	3204842		Receptacle, Starter		Appelez-nous	-
20	3206218		Starter				$ 54.08
14A	08010549		Trim-o/u Splasher Side Rh		Appelez-nous	-
7A	3200526		Gusset Support Rh		Appelez-nous	-
