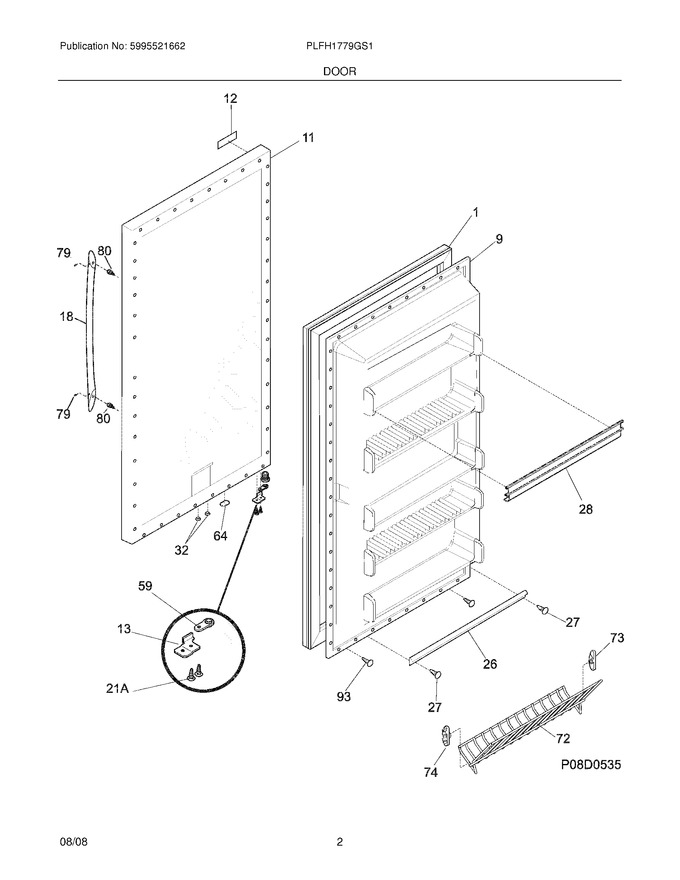

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - System
09 - Ice Maker
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507206 | Gasket-door,black (Replaces: 216522311) |
|
Immediately | $ 186.74 | ||||
| 9 | 216527813 | Panel-inner Door |
|
$ 270.75 | |||||
| 11 | 216526561 | Panel-outer Door,stainless |
|
- | |||||
| 12 | 242015101 | Label-nameplate (Replaces: 241808801) |
|
$ 4.55 | |||||
| 13 | 216974400 | Door Stop |
|
$ 46.92 | |||||
| 18 | 240536818 | Handle-door,stainless Steel ,with Insert,& Set Screw |
|
$ 202.00 | |||||
| 26 | 216524201 | Gasket,secondary (Replaces: 216524200) |
|
$ 49.62 | |||||
| 27 | 5303212828 | Clip,panel Mtg |
|
$ 16.63 | |||||
| 28 | 216806100 | Rack-door,contour ,(3) |
|
$ 80.59 | |||||
| 32 | 5309950074 | Valve, Breather |
|
$ 12.48 | |||||
| 59 | 216974500 | Bearing,door Closer |
|
$ 15.54 | |||||
| 64 | 216403700 | Plug-button,hole Filler ,door Base |
|
$ 58.12 | |||||
| 72 | 297118100 | Shelf,tilt Out ,wire |
|
- | |||||
| 73 | 216513900 | End Cap,shelf ,lh ,tilt-out |
|
$ 48.86 | |||||
| 74 | 216514000 | End Cap,shelf ,rh ,tilt-out |
|
$ 48.05 | |||||
| 79 | 218755402 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 33.00 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 10.85 | ||||
| 21A | 5304460608 | Screw,flat Head ,no.1/4-20 ,door Stop/hng |
|
$ 13.39 | |||||
| NI | 5304406520 | Clip,panel Mtg Kit ,(40) |
|
$ 125.83 | |||||
| NI | 297048000 | Screw,anchor ,no.8 ,white |
|
$ 12.05 | |||||
| NI | 240537301 | Nut-anchor,door Hdl Screw |
|
$ 11.34 |
