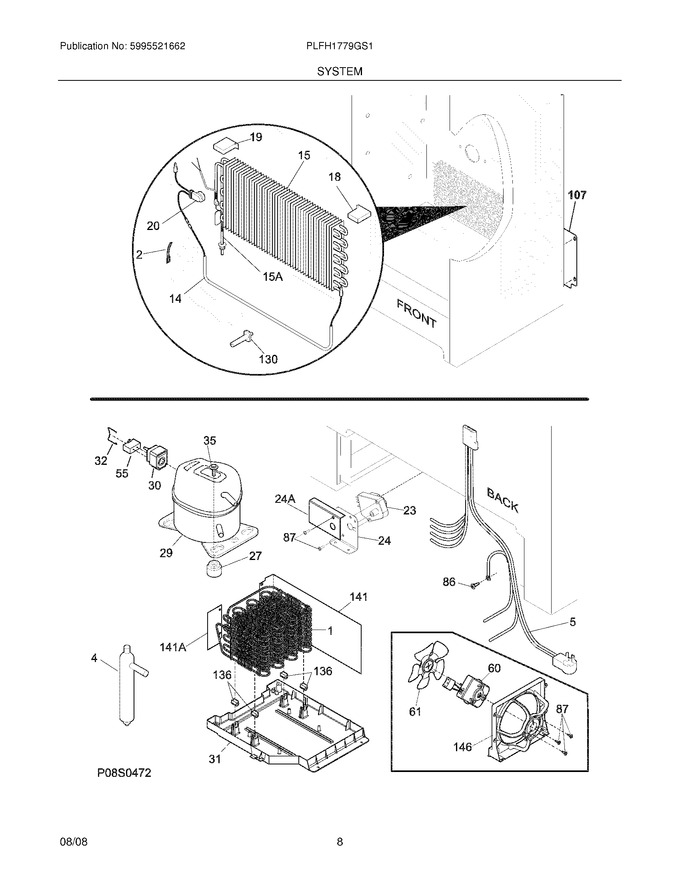

07 - System


09 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	297152201		Condenser				$ 172.79
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
4	216987500		Drier-filter		Appelez-nous	-
14	216730700		Heater-defrost			Immediately	$ 116.44
18	297078700		Insulator-evap,styrofoam				$ 8.14
19	297078800		Insulator-evap,styrofoam				$ 2.32
20	297216600		Thermostat,defrost   (Replaces: 216872200)			Immediately	$ 27.52
24	216968501		Bracket-timer				$ 74.70
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	297237702		Controller,compressor   (Replaces: 297237800)				$ 105.86
31	297165800		Pan-drain				$ 89.15
32	297030500		Clip,controller			Immediately	$ 12.05
35	297177200		Bolt,compressor		Appelez-nous	-
60	297279500		Motor-condenser Fan   (Replaces: 241584301)			Immediately	$ 141.66
61	241639502		Blade-condenser Fan   (Replaces: 241639501)			Immediately	$ 21.99
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
87	5304463290		Screw,hi-lo Blunt ,no.8-18x1/2		Appelez-nous	-
107	297165400		Shield,compressor ,compartment				$ 19.85
130	216486800		Support,evaporator Mtg		Appelez-nous	-
136	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
141	297164200		Divider,air Flow				$ 26.23
146	297164000		Shroud-fan Orfice				$ 76.97
15A	297217900		Heat Exchanger,suct/cap Tube			Immediately	$ 91.82
24A	297207900		Guard,timer				$ 5.72
F141	297194700		Divider,small ,air Flow		Appelez-nous	-
F146	216337701		Screw,hwh ,10-24 X 0.500 ,swage				$ 14.41
F15	297414901		Evaporator   (Replaces: 216997300)			Immediately	$ 171.34
F23	5304518034		Timer-defrost   (Replaces: 216744500)			Immediately	$ 57.55
F29	5304478809		Compressor,w/o Electricals   (Replaces: 297237400)			Immediately	$ 584.96
F5	297171700		Harness-main				$ 57.04
F55	218909912		Capacitor-run,220 Vac ,12 Microfarad			Immediately	$ 74.75
FNI	297366805		Cord-power,flat   (Replaces: 297169900)				$ 68.68
NI	216502500		Sleeve,suction Line				$ 10.85
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 13.46
NI	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
NI	297315800		Clip   (Replaces: 297048400)				$ 10.13
NI	297102800		Spacer-tube		Appelez-nous	-
NI	297014500		Plug-suction Line		Appelez-nous	-
