SELECT A DIAGRAM

01 - Cover

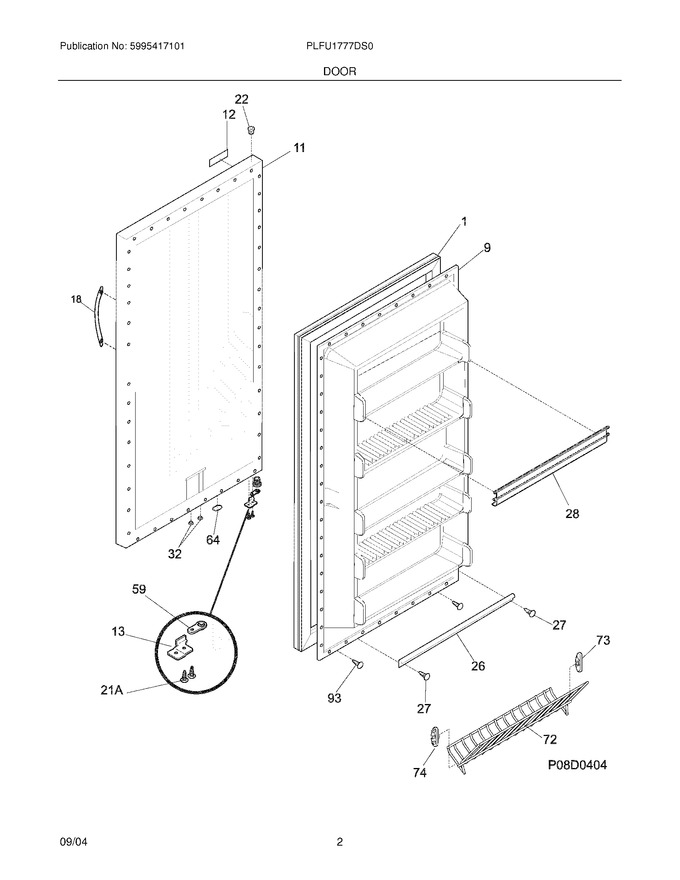

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507206		Gasket-door,black   (Replaces: 216522311)			Immediately	$ 186.74
9	216527813		Panel-inner Door,frzr				$ 270.75
11	216526550		Panel-outer Door,stainless Steel				$ 281.03
12	240558802		Label-nameplate				$ 3.03
13	216974400		Door Stop				$ 46.92
18	240536801		Handle-door,stainless Steel ,with Insert		Appelez-nous	-
22	216970802		Bearing,hinge ,top   (Replaces: 216970800)			Immediately	$ 10.85
26	216524201		Gasket,secondary   (Replaces: 216524200)				$ 49.62
27	5303212828		Clip,panel Mtg				$ 16.63
28	216806100		Rack-door,contour ,(3)				$ 80.59
32	5309950074		Valve,breather ,door Base				$ 12.48
59	216974500		Bearing,door Closer				$ 15.54
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
72	216514100		Shelf,tilt Out ,wire				$ 123.80
73	216513900		End Cap,shelf ,lh ,tilt-out				$ 48.86
74	216514000		End Cap,shelf ,rh ,tilt-out				$ 48.05
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
21A	5303271077		Screw,flat Head ,no.1/4-20 ,door Stop/hng				$ 8.82
NI	218755504		Screw-shoulder,no.10 Ab ,handle Mounting   (Replaces: 218755503)			Immediately	$ 18.60
NI	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00

    View Diagram in Separate Window       Print Part List
