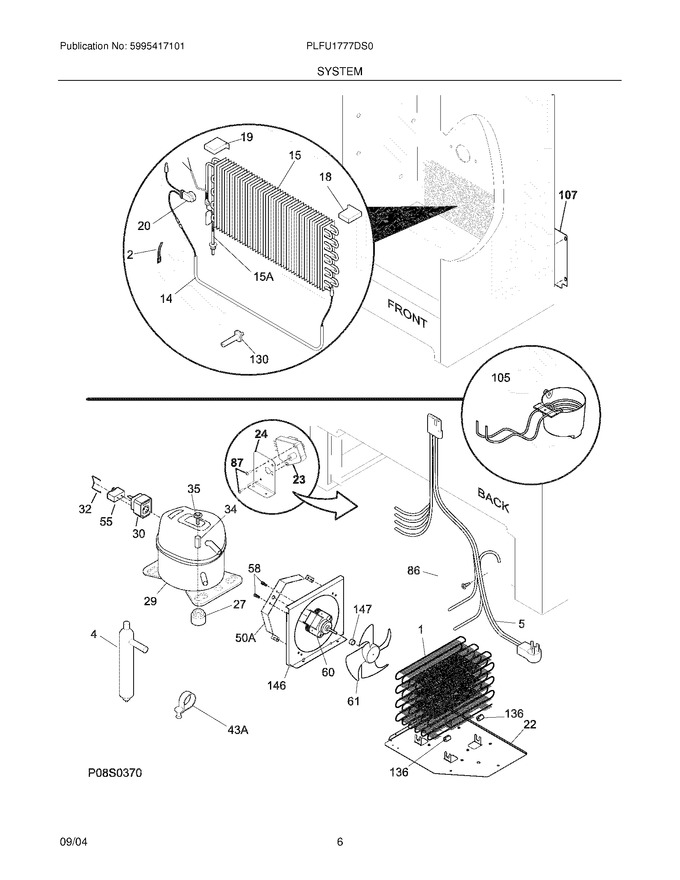

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	297015400		Condenser,dynamic,freezer		Appelez-nous	-
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
14	216730700		Heater-defrost			Immediately	$ 116.44
18	216727600		Insulator-evap,styrofoam		Appelez-nous	-
19	216727700		Insulator-evap,styrofoam		Appelez-nous	-
20	297216600		Thermostat-defrost   (Replaces: 216731000)			Immediately	$ 27.52
22	216970300		Base,condenser				$ 38.96
23	5304518034		Timer,defrost ,12 Hour   (Replaces: 216744400)			Immediately	$ 57.55
24	216968500		Bracket-timer		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	216954202		Controller,compressor				$ 74.42
32	216649100		Clamp,elec Cont Mtg ,compressor				$ 12.50
34	5306594529		Sleeve Compressor (3)				$ 10.34
35	5303272328		Screw,ind Hex Sems ,1/4-28 Unfx ,compressor,(3)				$ 10.34
55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909913)			Immediately	$ 35.38
58	240555002		Screw,hex Washer Head ,8-32 X 0.375   (Replaces: 218897002)			Immediately	$ 13.46
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
87	08037849		Screw,ph Truss Head ,6-32(t) X 0.500 ,thread Cutting				$ 8.98
105	216854001		Cup-drain		Appelez-nous	-
107	297001900		Shield,compressor ,compartment		Appelez-nous	-
130	216486800		Support,evaporator Mtg		Appelez-nous	-
136	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
146	216970200		Shroud-fan Orfice				$ 104.90
147	240560001		Ring-compression		Appelez-nous	-
43A	5303212614		Clip,harness Mount				$ 2.88
50A	240524001		Bracket,fan Motor Mount				$ 185.70
F15	297414901		Evaporator   (Replaces: 216737300)			Immediately	$ 171.34
F15A	216783200		Heat Exchanger,suct/cap Tube			Immediately	$ 91.09
F29	216966700		Compressor,w/o Electricals		Appelez-nous	-
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	216993600		Harness-main		Appelez-nous	-
F60	5303918774		Motor-condenser Fan   (Replaces: 240525401)			Immediately	$ 186.30
F61	240524102		Fan Blade,galv Steel ,condenser Fan   (Replaces: 240524101)			Immediately	$ 39.43
NI	216036601		Screw,quadrex ,8-32 X 0.300 ,grounding   (Replaces: 216347500)				$ 13.65
NI	216502500		Sleeve,suction Line				$ 10.85
NI	5303298960		Spacer-tube,0.237`` Id		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
