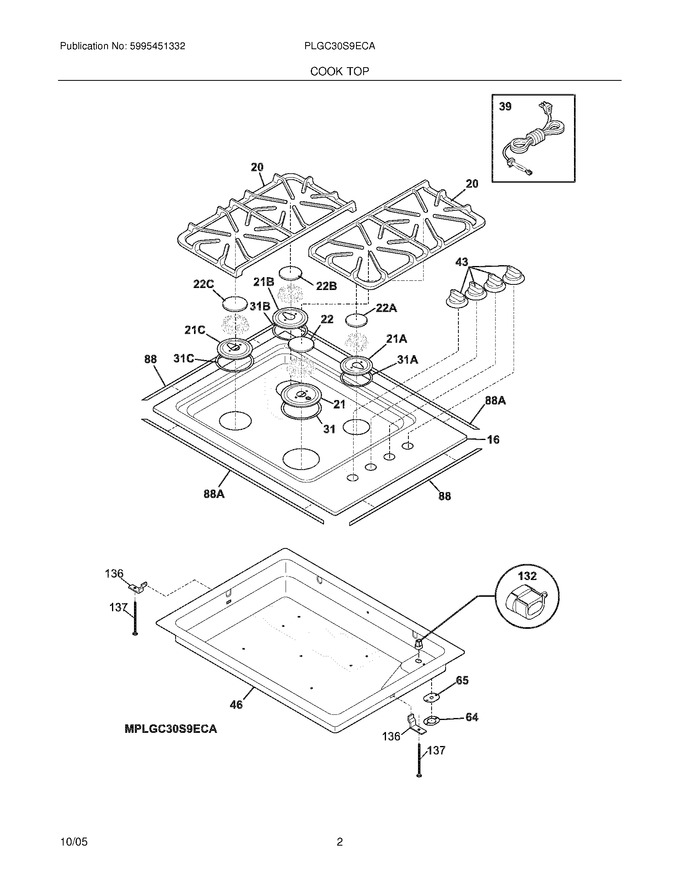

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318279312		Maintop,stainless		Appelez-nous	-
20	318221665		Grate,black ,(2)		Appelez-nous	-
21	316264903		Skirt,14k Burner ,black				$ 104.69
22	316219905		Cap,14k Burner ,black				$ 146.53
31	316242000		Seal,14k Burner				$ 73.71
39	318144006		Cord,service		Appelez-nous	-
43	318099113		Knob,valve ,black ,(4)		Appelez-nous	-
46	318278900		Box,burner		Appelez-nous	-
64	5303304033		Bracket,retainer		Appelez-nous	-
65	5304506478		Seal, Rubber   (Replaces: 5303304032)				$ 11.34
88	318280102		Gasket,cooktop ,21.48`` ,sides ,(2)   (Replaces: 318280101)				$ 59.12
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	318264301		Support,box ,(2)   (Replaces: 318264300)				$ 42.95
137	5303285443		Screw,lock Bracket ,10-24 X 2.00		Appelez-nous	-
21A	316241904		Skirt,5k Burner ,black				$ 87.75
21B	316241804		Skirt,9.5k Burner ,black				$ 84.74
21C	316241704		Skirt,12k Burner ,black				$ 79.86
22A	316206604		Cap,5k Burner ,black				$ 102.69
22B	316213505		Cap,9.5k Burner ,black				$ 102.30
22C	316213605		Cap,12k Burner ,black				$ 143.06
31A	316242003		Seal,5k Burner				$ 15.17
31B	316242002		Seal,9.5k Burner				$ 25.02
31C	316242001		Seal,12k Burner				$ 23.06
88A	318280100		Gasket,cooktop ,29.79`` ,front/back ,(2)				$ 39.80
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
