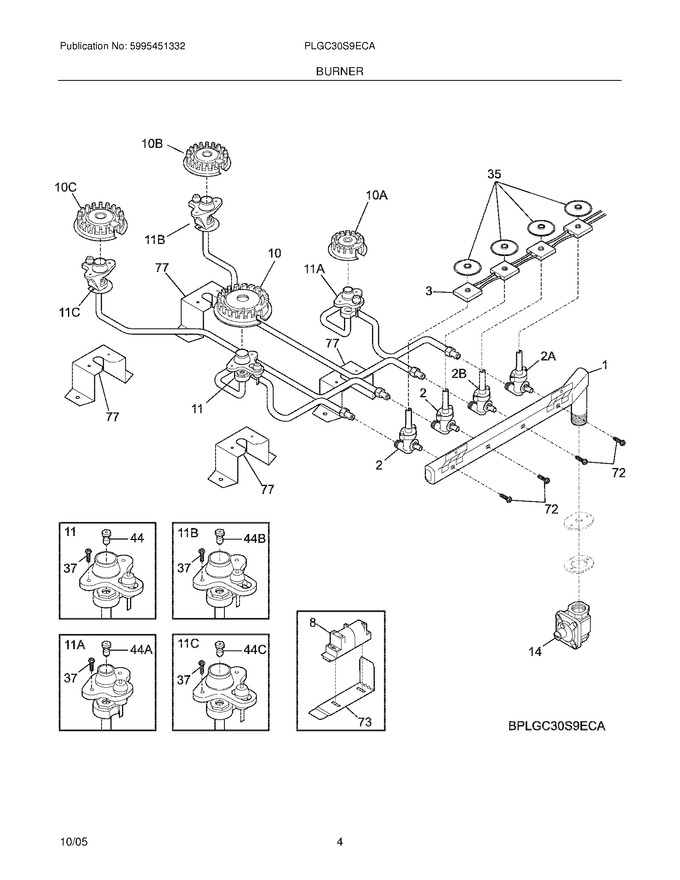

05 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318177006		Manifold Pipe		Appelez-nous	-
35	318146301		Bushing				$ 34.34
37	316240600		Screw,assy Mtg ,ignitor/orifice			Immediately	$ 12.13
44	316237900		Orifice,top Burner ,14k				$ 63.80
72	316134300		Screw,10-24 ,valve Mounting		Appelez-nous	-
73	318024201		Bracket,spark Module				$ 9.08
77	318192600		Bracket,burner Mtg ,(5)		Appelez-nous	-
44A	316237903		Orifice-top Burner,5k				$ 67.83
44B	316237902		Orifice,top Burner ,9.5k				$ 65.22
44C	316237901		Orifice,top Burner ,12k				$ 64.46
F10	316223400		Burner,sealed ,14k				$ 94.50
F10A	316206400		Burner,sealed ,5k		Appelez-nous	-
F10B	316212400		Burner,sealed ,9.5k			Immediately	$ 32.62
F10C	316212300		Burner,sealed ,12k				$ 105.95
F11	318221333		Ignitor/orifice Assy.,top Burner ,right Front,14k ,w/holder ,tube				$ 261.03
F11A	318221332		Ignitor/orifice Assy.,top Burner ,right Rear,5k ,w/holder ,tube				$ 146.84
F11B	318221334		Ignitor/orifice Assy.,top Burner ,left Rear,9.5k ,w/holder ,tube				$ 166.43
F11C	318221336		Ignitor/orifice Assy.,top Burner ,left Front,12k ,w/holder ,tube				$ 193.99
F14	5308007974		Regulator-pressure				$ 309.02
F2	318087315		Valve,burner ,14k				$ 231.76
F2A	318087313		Valve,burner ,5k				$ 184.80
F2B	318087314		Valve,burner ,9.5k ,(2)				$ 180.71
F3	318232604		Wiring Harness,w/igntr Switch				$ 292.73
F8	5304505695		Module,spark   (Replaces: 316135701)			Immediately	$ 68.16
NI	5303311532		Screw,6-32 X 1/4`` ,back		Appelez-nous	-
NI	08011955		Screw,10-24 X 0.375 ,square Drive			Immediately	$ 9.36
NI	5304403558		Screw,10-16 X 0.250		Appelez-nous	-
NI	318127425		Lp Conversion Kit				$ 56.23
NI	318199742		Wiring Harness,ignitor		Appelez-nous	-
