SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner

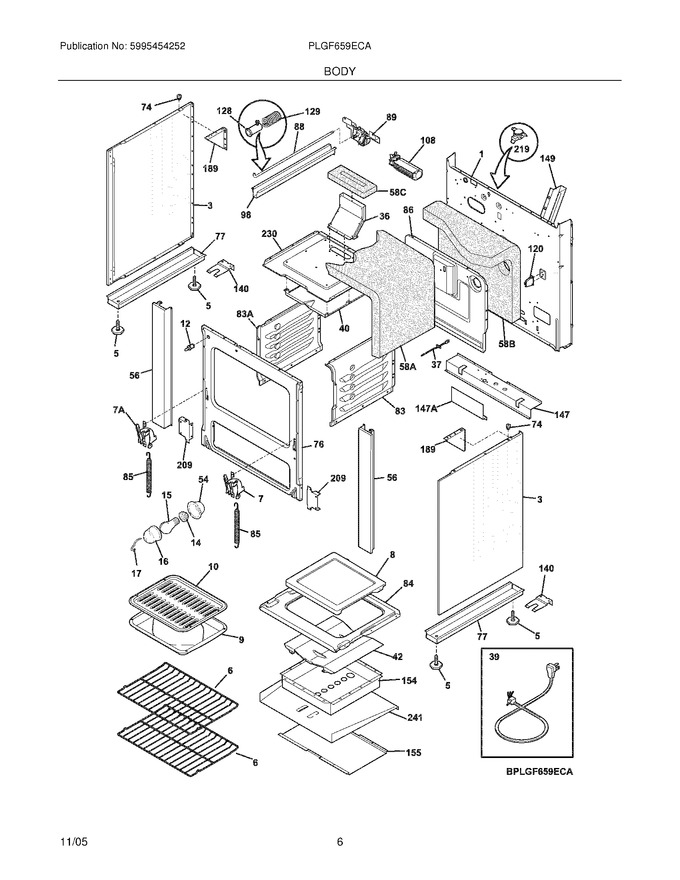

07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318076305		Back,main		Appelez-nous	-
3	318317903		Panel-bodyside,black				$ 240.45
5	318175510		Screw-leveling   (Replaces: 318175503)			Immediately	$ 24.26
6	318315810		Rack,oven ,(2)		Appelez-nous	-
7	318348800		Hinge Assy,rh				$ 74.09
8	318135500		Panel-oven Bottom Insert		Appelez-nous	-
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Cover,oven Light ,glass   (Replaces: 3201911)			Immediately	$ 14.18
17	5303205904		Clip,lamp Cover ,retainer				$ 7.67
36	318316100		Box,flue Assy.		Appelez-nous	-
39	5304534377		Cord,service   (Replaces: 318144008)				$ 26.85
40	318133300		Baffle,broil Burner		Appelez-nous	-
42	318168700		Baffle,oven Burner		Appelez-nous	-
54	5303271606		Housing,oven Light		Appelez-nous	-
56	318315200		Trim,vertical ,stainless ,front ,(2)		Appelez-nous	-
74	3051063		Grommet,bodyside		Appelez-nous	-
76	318320801		Frame,oven ,front		Appelez-nous	-
77	318166702		Rail,base		Appelez-nous	-
83	318134400		Liner,oven ,rh		Appelez-nous	-
84	318134700		Frame,oven Bottom		Appelez-nous	-
85	318088400		Spring,oven Door ,(2)				$ 116.03
86	318135300		Liner,oven ,back		Appelez-nous	-
88	318118906		Rod,latch		Appelez-nous	-
89	318095951		Motor,latch Assy ,w/brkt & Switch		Appelez-nous	-
98	318332800		Channel,latch Rod		Appelez-nous	-
108	318073002		Blower,fan		Appelez-nous	-
120	3051096		Support,oven Rear		Appelez-nous	-
128	5303311163		Bushing		Appelez-nous	-
129	5303311164		Spring				$ 18.95
140	5304405240		Anti-tip Accessories		Appelez-nous	-
147	318168400		Support,safety Valve		Appelez-nous	-
149	3131046		Channel,wiring		Appelez-nous	-
154	318076600		Pan,oven Burner		Appelez-nous	-
155	318160600		Shield,door Lock ,btm		Appelez-nous	-
189	318322800		Angle,rear Plenum ,(2)		Appelez-nous	-
209	5303286692		Support,rail		Appelez-nous	-
230	318134511		Liner,oven		Appelez-nous	-
241	318121200		Retainer,btm Insullation		Appelez-nous	-
58A	318285080		Insulation,top & Sides ,oven Wrapper		Appelez-nous	-
58B	318285081		Insulation,top & Back ,oven Wrapper		Appelez-nous	-
58C	318285088		Insulation,flue ,(3)		Appelez-nous	-
7A	318348801		Hinge Assy,lh				$ 80.24
83A	318134401		Liner,oven ,lh		Appelez-nous	-
F12	318089916		Switch,light				$ 68.04
F147	08068039		Support, Control Valve		Appelez-nous	-
F219	318003606		Thermostat,safety				$ 105.19
F241	3201899		Washer,flat		Appelez-nous	-
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
NI	5303131801		Screw, 10 X 3/8		Appelez-nous	-
NI	3201861		Screw,6 X 0.375 ,(4)				$ 0.76
NI	5303311528		Screw,oval Hd Sq Dr ,6-20ab X 0.625 ,black		Appelez-nous	-
NI	5303207651		Spring,oven Door ,(1)		Appelez-nous	-
NI	154079601		Nut,keps ,10-24   (Replaces: 3201885)				$ 0.41
NI	318231824		Harness,wiring ,door Switch		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	3051070		Screw,hex Washer Head ,10-24 X 0.438 ,special		Appelez-nous	-
NI	08013303		Tee Nut,snap-in ,levelling Screw		Appelez-nous	-
NI	318224706		Wiring Harness,chassis		Appelez-nous	-
NI	318120711		Switch				$ 87.68

    View Diagram in Separate Window       Print Part List
