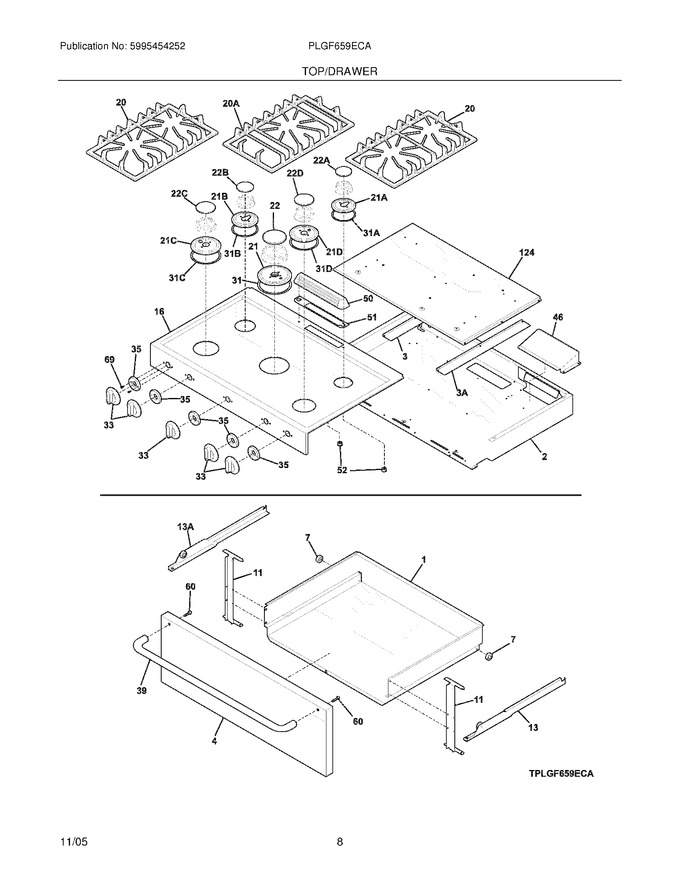

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318157611		Drawer,storage ,black		Appelez-nous	-
2	318336500		Panel,insulation ,upper		Appelez-nous	-
3	318336100		Divider,vent Box ,side		Appelez-nous	-
4	318315100		Panel,drawer ,stainless ,outer		Appelez-nous	-
7	318332200		Roller,nylon ,(2)		Appelez-nous	-
11	318316000		Bracket,drawer Panel ,(2)		Appelez-nous	-
13	5303051055		Channel-drawer, Rh				$ 56.60
16	318185211		Main Top Assy,glass ,black				$ 1,027.80
20	318221760		Grate,black ,(2)				$ 360.15
21	316264803		Skirt,17k Burner ,black				$ 93.35
22	316271904		Cap,17k Burner ,black				$ 206.11
31	316242004		Seal,17k Burner				$ 18.95
33	318341400		Knob,control ,(5)				$ 72.80
35	318341300		Skirt,(5)		Appelez-nous	-
39	318039801		Handle,door ,stainless Steel ,oven		Appelez-nous	-
46	318336300		Deflector,ventilation		Appelez-nous	-
50	318315900		Deflector,flue		Appelez-nous	-
51	318315300		Gasket,flue Deflector		Appelez-nous	-
52	5304442349		Pushnut,flue Deflector ,(2)		Appelez-nous	-
60	240442708		Screw,handle Mtg ,10-32 X 3/4   (Replaces: 5304400794)				$ 8.34
69	5303308450		Screw,8 X 0.375		Appelez-nous	-
124	318336400		Box,vent		Appelez-nous	-
13A	5303051056		Channel,drawer ,lh				$ 78.44
20A	318221759		Grate,black ,center				$ 379.94
21A	316241904		Skirt,5k Burner ,black				$ 87.75
21B	316241804		Skirt,9.5k Burner ,black				$ 84.74
21C	316264903		Skirt,14k Burner ,black				$ 104.69
21D	316241704		Skirt,12k Burner ,black				$ 79.86
22A	316206604		Cap,5k Burner ,black				$ 102.69
22B	316213505		Cap,9.5k Burner ,black				$ 102.30
22C	316219905		Cap,14k Burner ,black				$ 146.53
22D	316213605		Cap,12k Burner ,black				$ 143.06
31A	316242003		Seal,5k Burner				$ 15.17
31B	316242002		Seal,9.5k Burner				$ 25.02
31C	316242000		Seal,14k Burner				$ 73.71
31D	316242001		Seal,12k Burner				$ 23.06
3A	318336200		Divider,vent Box ,center		Appelez-nous	-
NI	5303131801		Screw, 10 X 3/8		Appelez-nous	-
NI	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
NI	318163600		Cleaner,cooktop		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17

    View Diagram in Separate Window       Print Part List
