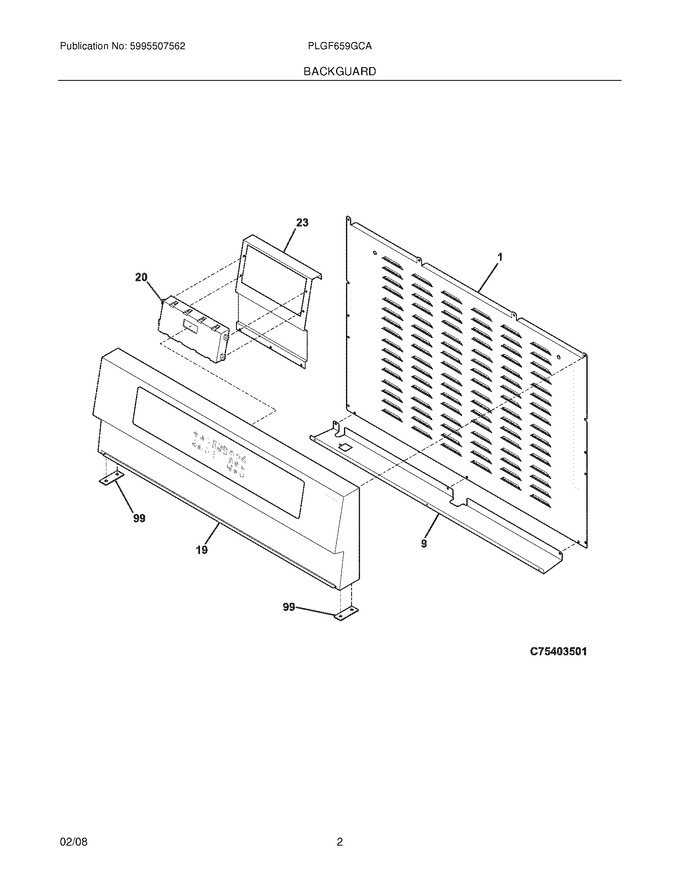

03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer/smalldoor


11 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318316311		Cover,rear ,upper		Appelez-nous	-
9	318339100		Bracket,mounting ,service Cord		Appelez-nous	-
19	318331100		Control Panel Assembly,stainless ,w/glass				$ 792.92
23	318316201		Bracket,timer		Appelez-nous	-
99	5303304544		Spacer,end Cap Mtg.		Appelez-nous	-
F20	316418549		Clock/timer,electronic ,es340-350		Appelez-nous	-
NI	318224714		Wiring Harness,backguard		Appelez-nous	-
NI	318224715		Wiring Harness,backguard		Appelez-nous	-
NI	5303131801		Screw, 10 X 3/8		Appelez-nous	-
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
