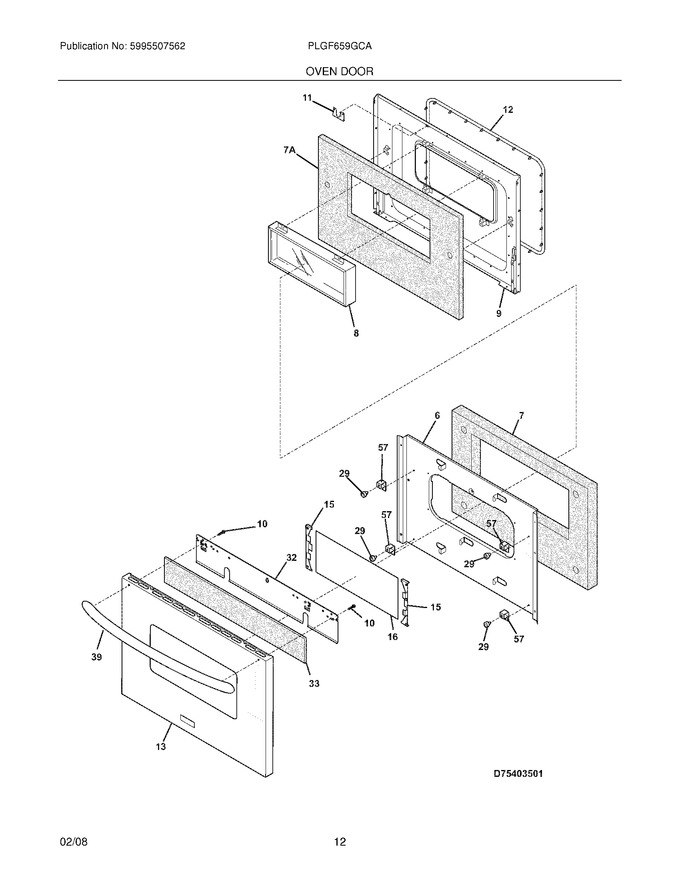

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318319601		Shield,insullation ,door		Appelez-nous	-
7	318285082		Insulation,oven Door		Appelez-nous	-
8	5303271567		Glass,oven Door ,inner		Appelez-nous	-
9	318157211		Panel,door ,inner				$ 394.07
10	240442708		Screw,handle Mtg ,10-32 X 3/4   (Replaces: 5304400794)				$ 8.34
11	318065102		Latch-door				$ 58.81
12	318053140		Seal,oven Door				$ 159.62
13	318344007		Door Assmebly,stainless/glass ,w/badge		Appelez-nous	-
15	318122100		Bracket,glass Mtg		Appelez-nous	-
16	318041610		Glass,oven Door ,heat Barrier		Appelez-nous	-
29	318147412		Bumper,base				$ 7.33
32	318057204		Deflector,handle		Appelez-nous	-
33	318294910		Insullation,deflector ,door		Appelez-nous	-
39	316246105		Handle,door/drawer ,stainless   (Replaces: 318219805)				$ 145.31
57	318172902		Stiffener Glass				$ 1.47
7A	318294908		Insullation,door		Appelez-nous	-
NI	5303131801		Screw, 10 X 3/8		Appelez-nous	-
NI	3051050		Screw-shoulder				$ 12.29
NI	316221001		Label,anti-tip		Appelez-nous	-
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
