Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 316013100 Frame-channel Appelez-nous -
2 5303290772 Frame-channel End Appelez-nous -
3 08011727 Gusset-corner (2) Appelez-nous -
4 08011721 Spacer-glass (2) Appelez-nous -
5 5303284806 Glass-outer Appelez-nous -
6 08011722 Glass-inner Appelez-nous -
7 5303935001 Strike-door Appelez-nous -
8 154079601 Hex-nut 10-24   (Replaces: 5303013272) Special Order $ 0.41

9 08011729 Handle Appelez-nous -
10 5303285179 Screw 8-32 X 1/2`` Ph Fl Hd (2) Special Order $ 13.46

11 3051302 Spacer-glass Appelez-nous -
*80342 316013300 Button-rear Appelez-nous -
2A 5303284147 Screw 10-32 X 1/2`` Ph Fl Hd (12) (non-illustrated) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

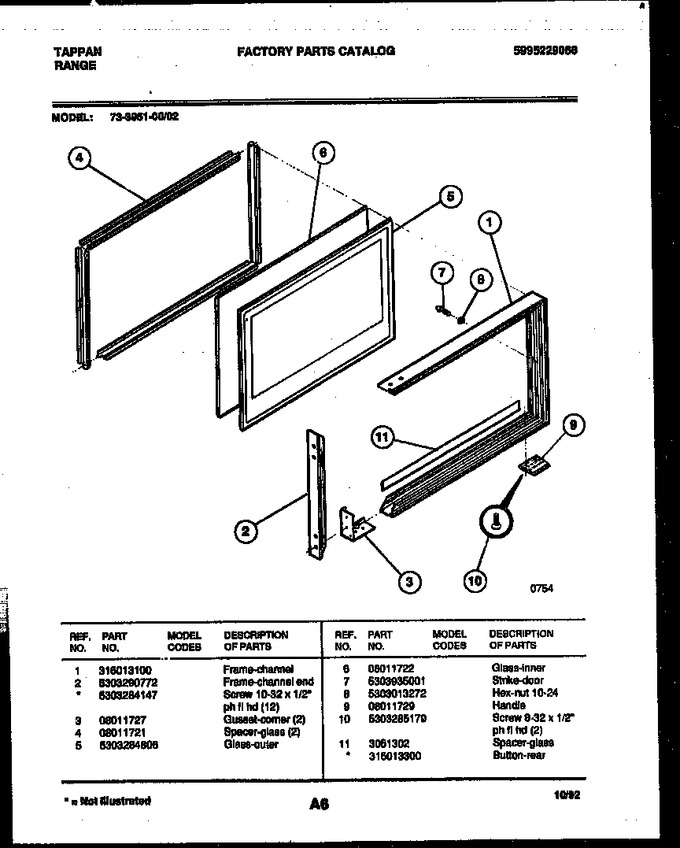

Diagram for 73-3951-23-02
