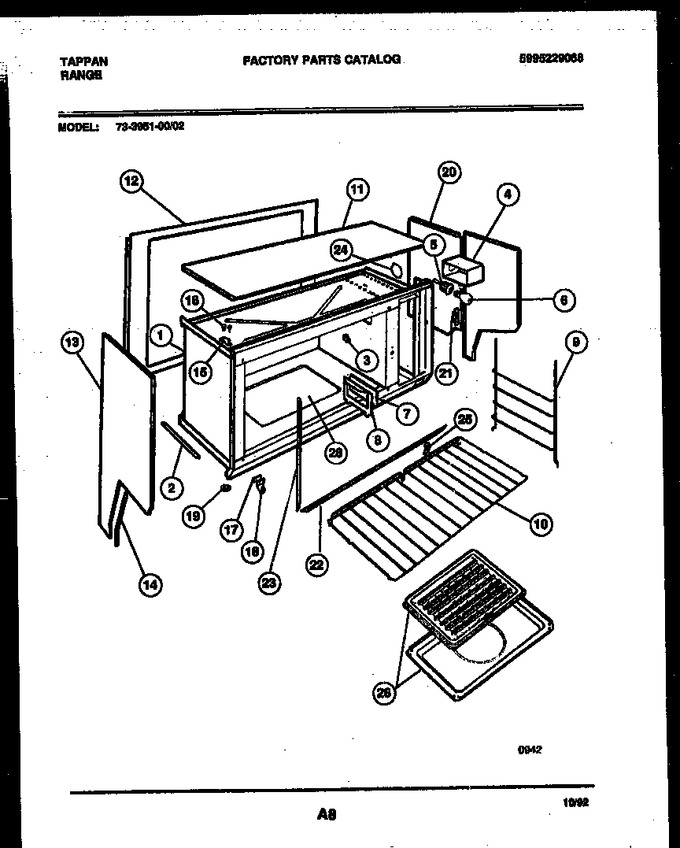

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 08011672 | Angle-stiffener |
|
- | |||||
| 3 | 5303284616 | Clip-cap Bulb (2) |
|
$ 9.86 | |||||
| 4 | 5303290773 | Box-light |
|
- | |||||
| 5 | 3014073 | Socket-light |
|
- | |||||
| 6 | 40A15 | Light Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 7 | 08011668 | Lens-oven Light |
|
- | |||||
| 8 | 08011669 | Cover Lens |
|
- | |||||
| 9 | 5303934091 | Glide-oven Rack (2) |
|
- | |||||
| 10 | 08011675 | Rack-oven |
|
- | |||||
| 11 | 3131625 | Panel-top |
|
- | |||||
| 12 | 3051236 | Back-oven Wall Upper |
|
- | |||||
| 13 | 5303269989 | Panel-bodyside Lh-almond |
|
- | |||||
| 13 | 3051264 | Panel-bodyside Rh-almond |
|
- | |||||
| 14 | 5303269815 | Trim-lh |
|
- | |||||
| 15 | 3131613 | Hinge-top |
|
- | |||||
| 16 | 5303051166 | Hinge-bottom |
|
- | |||||
| 17 | 08011665 | Plate-hinge |
|
- | |||||
| 18 | 5303285171 | Screw-10-32 Shoulder Special (2) |
|
- | |||||
| 19 | 3131737 | Washer-hinge (2) |
|
$ 5.59 | |||||
| 20 | 5303208706 | Shield-wool Side |
|
- | |||||
| 21 | 08011680 | Catch-door |
|
- | |||||
| 22 | 316024200 | Seal-oven Bottom |
|
- | |||||
| 23 | 316024201 | Seal-oven Sides |
|
- | |||||
| 24 | 08067732 | Cover-outlet (hood) |
|
- | |||||
| 25 | 316012800 | Strike-door |
|
- | |||||
| 26 | 5300279979 | Broiler Pan & Insert Kit |
|
- | |||||
| 28 | 08016605 | Oven Bottom |
|
- | |||||
| *80349 | 5303203651 | Fuse, Thermal Cutout |
|
$ 77.86 | |||||
| 14A | 08010549 | Trim-rh |
|
- | |||||
| 2A | 3015590 | Insulation-bottom 1 1/2 X 13 X 221/2 (non-illustrated) |
|
- | |||||
| 2B | 3015588 | Insulation-top 3 X 12 1/2 X 24 (non-illustrated) |
|
- | |||||
| 2C | 3015591 | Insulation-back And Side 2 X 6 X 50 (non-illustrated) |
|
- |
