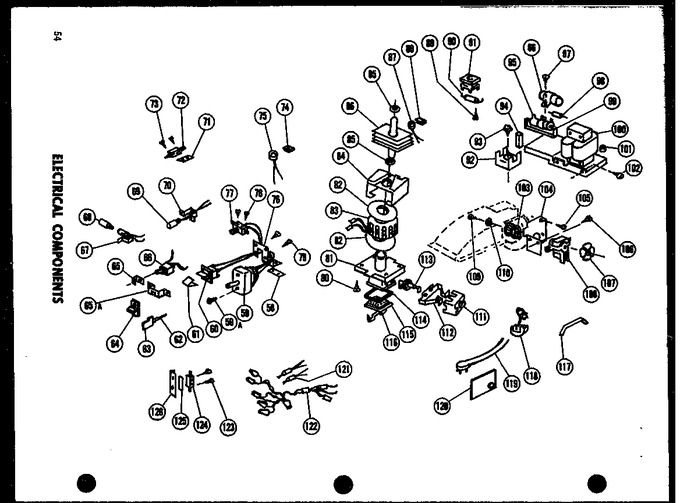

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
58	M0289502		Speed Nut		Appelez-nous	-
59	M0202533		Screw K		Appelez-nous	-
59	C3658001		Timer		Appelez-nous	-
60	M0340801		Switch, Paddle, Door Lock		Appelez-nous	-
61	M0900003		Gasket A		Appelez-nous	-
62	A3167601		Spring,lock Bar		Appelez-nous	-
63	A3166502		Bar Lock		Appelez-nous	-
64	B5654701		Door Latch		Appelez-nous	-
65	B5667001		Bracket,escutcheon		Appelez-nous	-
65	A3170801		Retainer,latch		Appelez-nous	-
66	A3090802		Switch,oven Light		Appelez-nous	-
67	B5660701		Socket,oven Light		Appelez-nous	-
68	A3167501		Bulb Q				$ 28.47
69	A3171201		Bulb		Appelez-nous	-
70	A3171301		Socket,oper.light		Appelez-nous	-
71	M0289502		Speed Nut		Appelez-nous	-
72	B5666501		Switch, Left Interlock		Appelez-nous	-
73	M0256821		Sems Fastner		Appelez-nous	-
74	M0115802		Clip		Appelez-nous	-
75	B5665801		Thermal Cutout		Appelez-nous	-
76	B5658301		Bracket,switch		Appelez-nous	-
77	M0340702		Switch A		Appelez-nous	-
78	M0256821		Sems Fastner		Appelez-nous	-
79	M0228015		Screw		Appelez-nous	-
80	M0216517		Screw		Appelez-nous	-
81	B5663701		Housing Plate Assy		Appelez-nous	-
82	M0274028		Washer		Appelez-nous	-
83	M0370602		Magnet Coil		Appelez-nous	-
84	C3596101		Support		Appelez-nous	-
85	B5621901		Washer		Appelez-nous	-
86	M0371101		Magnetron		Appelez-nous	-
87	M0370403		Thermal Prot		Appelez-nous	-
88	M0115802		Clip		Appelez-nous	-
89	M0216517		Screw		Appelez-nous	-
90	M0305007		Resistor, Relay A		Appelez-nous	-
91	C3656301		Relay Assy K		Appelez-nous	-
92	A3165201		Rectifier-bridge K		Appelez-nous	-
93	M0218116		Screw		Appelez-nous	-
94	M0325301		Insulator, Term. K		Appelez-nous	-
95	M0305101		Resistor,adj		Appelez-nous	-
96	M0300201		Capacitor		Appelez-nous	-
97	M0218116		Screw		Appelez-nous	-
98	M0305201		Resistor		Appelez-nous	-
99	A3165001		Brkt-adj-resistor		Appelez-nous	-
100	C3656001		Transformer K		Appelez-nous	-
101	WP487939		Nut   (Replaces: M0282015)				$ 6.95
102	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.05
103	B5660901		Blower Wheel		Appelez-nous	-
104	B5657501		Bracket,motor Mount		Appelez-nous	-
105	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
106	M0230017		Screw,tc		Appelez-nous	-
107	B5661801		Fan Blade		Appelez-nous	-
108	M0306701		Motor		Appelez-nous	-
109	M0202642		Screw		Appelez-nous	-
110	M0272605		Washer		Appelez-nous	-
111	B5656001		Shield Hv K		Appelez-nous	-
112	B5655901		Clip K		Appelez-nous	-
113	A3148801		Capacitor K		Appelez-nous	-
114	A3148701		Gasket		Appelez-nous	-
115	B5647901		Cover Cap Box K		Appelez-nous	-
116	A3145401		Bale Strap K		Appelez-nous	-
117	A3164702		Retainer Bar		Appelez-nous	-
118	M0370001		Strain Relief		Appelez-nous	-
119	B5602302		Power Cord		Appelez-nous	-
120	B5660601		Back Panel		Appelez-nous	-
121	A0304501		Connector A-k		Appelez-nous	-
122	D7108101		Wiring Harness		Appelez-nous	-
123	M0256821		Sems Fastner		Appelez-nous	-
124	M0340702		Switch A		Appelez-nous	-
125	M0289502		Speed Nut		Appelez-nous	-
126	B5665701		Bracket		Appelez-nous	-
