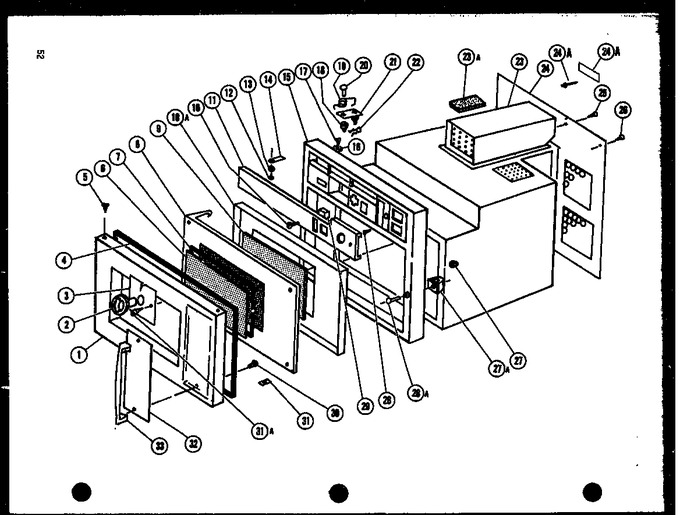

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7103401		Door, Outer		Appelez-nous	-
2	C3651501		Control Knob		Appelez-nous	-
3	B5659401		Thin Plate K		Appelez-nous	-
4	D7104801		Gasket, Door		Appelez-nous	-
5	M0229916		Screw T.c		Appelez-nous	-
6	A3164601		Window,door		Appelez-nous	-
7	M0275125		Tape, Transparent, Door Window		Appelez-nous	-
8	D7110401		Weldment, Inner Door Ring, Inc		Appelez-nous	-
9	A3166301		Insert,transparent		Appelez-nous	-
10	M0215102		Screw, Phillips Oval Head		Appelez-nous	-
10	D7102501		Inner Door		Appelez-nous	-
11	D7103501		Escutcheon Control		Appelez-nous	-
12	A3168101		See Svc Ltr Cr-163d		Appelez-nous	-
13	M0274032		Washer Non-metal		Appelez-nous	-
14	B5657902		Hinge Plate		Appelez-nous	-
14	B5663902		Weldment, Hinge Plate Bottom		Appelez-nous	-
15	D7103001		Bezel,outer Case		Appelez-nous	-
16	M0272402		Lock Washer		Appelez-nous	-
17	WP488130		Nut   (Replaces: M0282007)				$ 6.27
17	M0204716		Screw		Appelez-nous	-
18	M0590301		Roller, Door Stop		Appelez-nous	-
19	A3167801		Spring, Door Shackle		Appelez-nous	-
19	A3179301		Spring K		Appelez-nous	-
20	A3166901		Pin,shoulder		Appelez-nous	-
21	A3173101		Assembly, Door Closure Shackle		Appelez-nous	-
22	A3171501		Clip,hairpin		Appelez-nous	-
23	D7109401		Weldment, Oven Cavity		Appelez-nous	-
23	B5107614		Gasket		Appelez-nous	-
24	A4539601		Pop Rivet		Appelez-nous	-
24	A3097501		Seal, Access Panel		Appelez-nous	-
24	D7104101		Access Panel		Appelez-nous	-
25	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.05
26	M0230015		Screw		Appelez-nous	-
27	M0289805		Nut		Appelez-nous	-
27	M0100702		Catch, Door Strike		Appelez-nous	-
28	M0100801		Strike,door Catch		Appelez-nous	-
28	M0202533		Screw K		Appelez-nous	-
29	B5654801		Push Button		Appelez-nous	-
30	M0228016		Screw		Appelez-nous	-
31	M0287703		Nut K		Appelez-nous	-
31	M0228016		Screw		Appelez-nous	-
32	B5659001		Pan Handle K		Appelez-nous	-
33	B5657201		Door Handle		Appelez-nous	-
