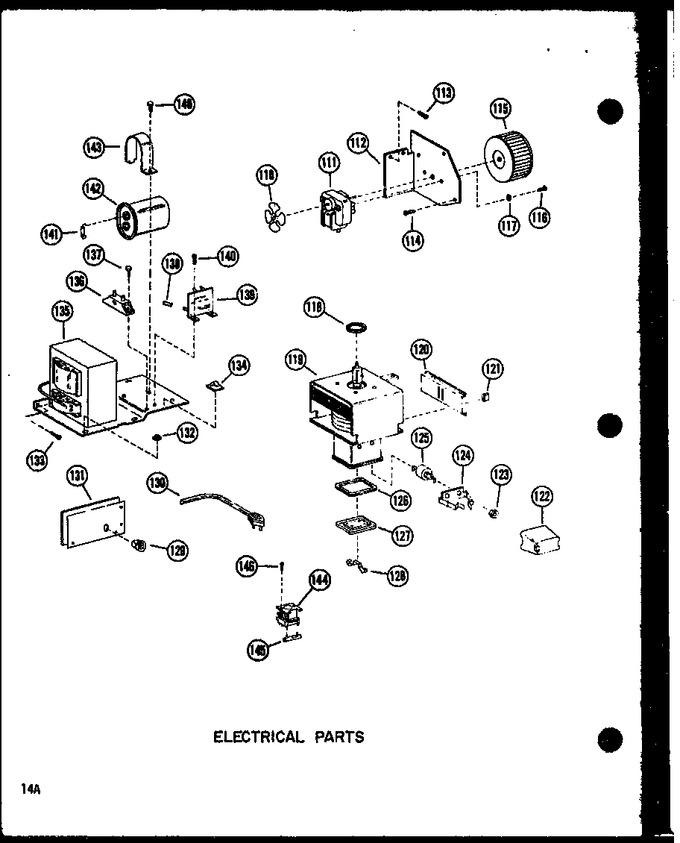

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
110	B5661801		Fan Blade		Appelez-nous	-
111	M0306701		Motor		Appelez-nous	-
112	B5657501		Bracket,motor Mount		Appelez-nous	-
113	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
114	M0230017		Screw,tc		Appelez-nous	-
115	B5660901		Blower Wheel		Appelez-nous	-
116	M0202642		Screw		Appelez-nous	-
117	M0272605		Washer		Appelez-nous	-
118	A3185102		Gasket, Magnetron		Appelez-nous	-
119	D7157002		Magnetron Kit,700w		Appelez-nous	-
120	B5679101		Baffle		Appelez-nous	-
121	M0113504		Clip K		Appelez-nous	-
122	B5656001		Shield Hv K		Appelez-nous	-
123	M0281901		Hex Nut		Appelez-nous	-
124	B5655902		Clip K		Appelez-nous	-
125	A3148801		Capacitor K		Appelez-nous	-
126	A3148701		Gasket		Appelez-nous	-
127	B5647901		Cover Cap Box K		Appelez-nous	-
128	A3145401		Bale Strap K		Appelez-nous	-
129	M0370001		Strain Relief		Appelez-nous	-
130	B5602302		Power Cord		Appelez-nous	-
131	B5660601		Back Panel		Appelez-nous	-
132	WP487939		Nut   (Replaces: M0282015)				$ 6.95
133	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.05
134	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.00
135	D7152101		Transformer		Appelez-nous	-
136	11QBP0235		Kit, Diode   (Replaces: B5685801)				$ 15.33
137	M0216517		Screw		Appelez-nous	-
138	M0325301		Insulator, Term. K		Appelez-nous	-
139	B5707301		Terminal Board		Appelez-nous	-
140	M0218116		Screw		Appelez-nous	-
141	M0305202		Resistor A		Appelez-nous	-
142	R0160002		Capacitor Assy		Appelez-nous	-
143	A3197101		Strap-capacitor A		Appelez-nous	-
144	C3656303		Relay A		Appelez-nous	-
145	M0305007		Resistor, Relay A		Appelez-nous	-
146	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
