Diagram # Part Number Description Series Availability Ships Price Add to Cart
50 M0230015 Screw Appelez-nous -
51 M0230028 Screw, No.8-32 X 5/16 Pph (blk) Appelez-nous -
52 D7104101 Access Panel Appelez-nous -
53 D7110601 Wrapper, Outer Case Appelez-nous -
54 A3173001 Foot,oc Wrapper Appelez-nous -
55 A3030302 Gasket Appelez-nous -
56 WPM0104106 Clip,cord   (Replaces: M0104101) Special Order $ 7.00

57 M0104102 Clip, Cord Special Order $ 8.10

58 M0113503 Clip Appelez-nous -
59 M0234117 Screw Appelez-nous -
60 B5684101 Protector, Thermal Appelez-nous -
61 C3671601 Top-light Shield Appelez-nous -
62 M0216517 Screw Appelez-nous -
63 C3671501 Back-light Shield Appelez-nous -
64 A3030309 Gasket (per Foot) Appelez-nous -
65 A3167501 Bulb Q Special Order $ 28.47

66 B5679501 Lamp Holder Appelez-nous -
67 A3191301 Gasket-light Shield Appelez-nous -
68 M0370004 Strain Relief Appelez-nous -
69 D7152403 Oven Wldmt Appelez-nous -
70 D7190902 Grease Shield Appelez-nous -
71 D7107702 Tray, Glass, Oven Appelez-nous -
72 D7158001 Wiring Harness Appelez-nous -
74 B5679302 Arm-cb Appelez-nous -
75 A3191401 Pin-cb Appelez-nous -
76 M0273504 Washer Appelez-nous -
77 B5682701 Spring-cb Arm Appelez-nous -
78 B5678201 Brkt-spring Anchor Appelez-nous -
79 M0201903 Machine Screw Appelez-nous -
80 B5661601 Bushing,stirrer Appelez-nous -
81 D7104401 Fan, Stirrer Appelez-nous -
82 A3165901 Spacer,stirrer Appelez-nous -
83 B5663801 Wldmt,stirrer Supt Appelez-nous -
84 M0216517 Screw Appelez-nous -
85 M0320901 Terminal Appelez-nous -
86 B5677202 Terminal Block Appelez-nous -
87 A3196401 Bushing Appelez-nous -
88 D7181101 Scroll Appelez-nous -
89 B5107614 Gasket Appelez-nous -
90 B5688701 Relay, Time Delay Appelez-nous -
91 A3207501 Insulation Board Appelez-nous -
92 M0325302 Insulator Appelez-nous -
93 A3205601 Insulation Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

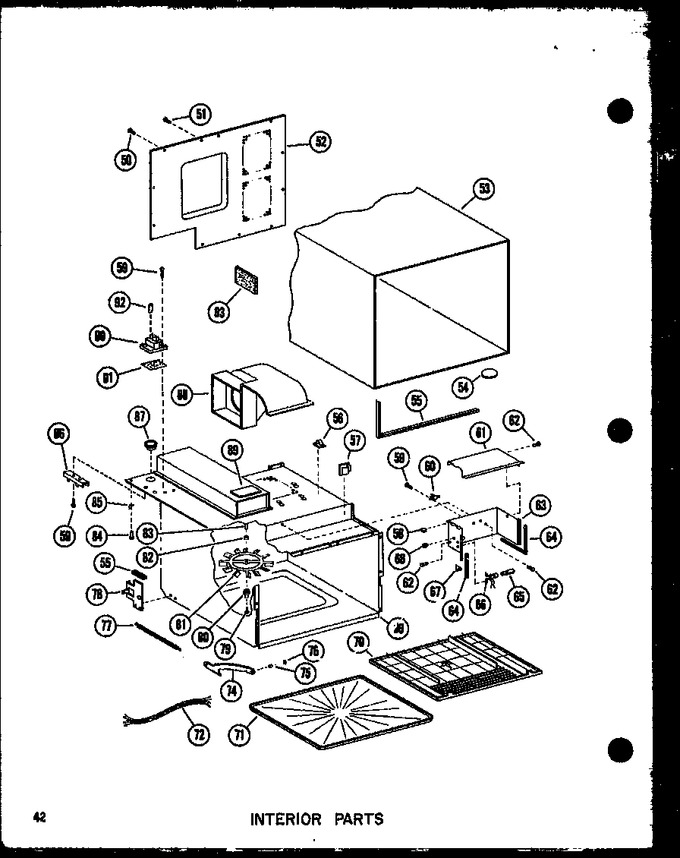

Diagram for R-2 (BOM: P7130602M)
