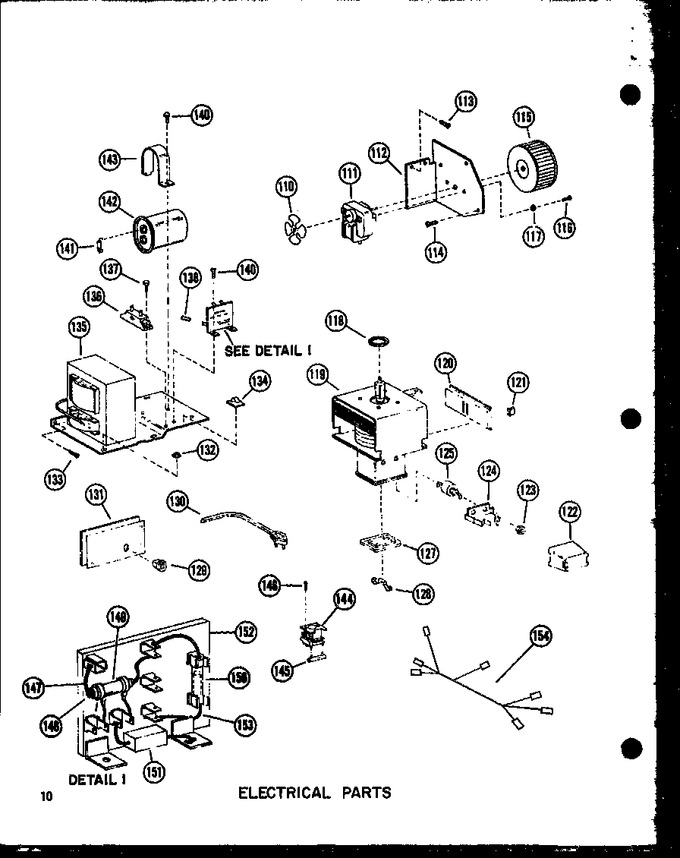

01 - Electrical Parts
02 - Exterior Parts
03 - Interior Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 110 | B5661801 | Fan Blade |
|
- | |||||
| 111 | M0306701 | Motor |
|
- | |||||
| 112 | B5657501 | Bracket,motor Mount |
|
- | |||||
| 113 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 114 | M0230017 | Screw,tc |
|
- | |||||
| 115 | B5660901 | Blower Wheel |
|
- | |||||
| 116 | M0202642 | Screw |
|
- | |||||
| 117 | M0272605 | Washer |
|
- | |||||
| 118 | A3185102 | Gasket, Magnetron |
|
- | |||||
| 119 | D7157002 | Magnetron Kit,700w |
|
- | |||||
| 120 | B5679101 | Baffle |
|
- | |||||
| 121 | M0113504 | Clip K |
|
- | |||||
| 122 | B5656001 | Shield Hv K |
|
- | |||||
| 123 | M0281901 | Hex Nut |
|
- | |||||
| 124 | B5655902 | Clip K |
|
- | |||||
| 125 | A3148801 | Capacitor K |
|
- | |||||
| 127 | B5647901 | Cover Cap Box K |
|
- | |||||
| 128 | A3145401 | Bale Strap K |
|
- | |||||
| 129 | M0370001 | Strain Relief |
|
- | |||||
| 130 | B5703503 | Power Cord |
|
- | |||||
| 131 | B5660601 | Back Panel |
|
- | |||||
| 132 | WP487939 | Nut (Replaces: M0282015) |
|
$ 6.95 | |||||
| 133 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.05 | ||||
| 135 | D7152101 | Transformer |
|
- | |||||
| 136 | 11QBP0235 | Kit, Diode (Replaces: B5685801) |
|
$ 15.33 | |||||
| 137 | M0216517 | Screw |
|
- | |||||
| 138 | M0325301 | Insulator, Term. K |
|
- | |||||
| 139 | Y00000000 | See Note Assembly, Terminal Board -- (see Detail 1) |
|
- | |||||
| 140 | M0218116 | Screw |
|
- | |||||
| 141 | M0305202 | Resistor A |
|
- | |||||
| 142 | R0160002 | Capacitor Assy |
|
- | |||||
| 143 | A3197101 | Strap-capacitor A |
|
- | |||||
| 144 | C3656303 | Relay A |
|
- | |||||
| 145 | M0305007 | Resistor, Relay A |
|
- | |||||
| 146 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 147 | M0308102 | Fuse |
|
- | |||||
| 148 | M0321701 | Sleeve |
|
- | |||||
| 149 | M0305009 | Resistor A |
|
- | |||||
| 150 | M0305402 | Resistor Fuse Kit |
|
- | |||||
| 151 | M0305204 | Resistor |
|
- | |||||
| 152 | B5730901 | Terminal Board |
|
- | |||||
| 153 | M0308101 | Fuse |
|
$ 9.87 | |||||
| 154 | C8725101 | Wire Harness, Power Supply |
|
- | |||||
| NI | C3655822 | Jumper Wire |
|
- | |||||
| NI | C3655807 | Jumper Wire |
|
- | |||||
| NI | C3655809 | Jumper Wire |
|
- |
