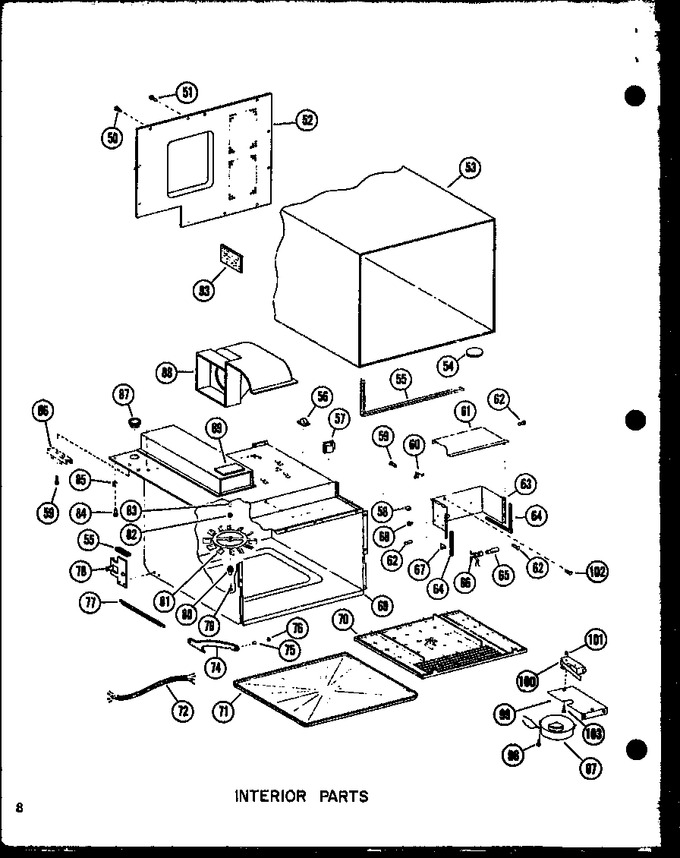

03 - Interior Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 50 | M0230015 | Screw |
|
- | |||||
| 51 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.05 | ||||
| 52 | D7104101 | Access Panel |
|
- | |||||
| 53 | D7110606 | Wrapper |
|
- | |||||
| 54 | B5732501 | Foot |
|
- | |||||
| 55 | A3030302 | Gasket |
|
- | |||||
| 56 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.00 | |||||
| 57 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 58 | M0113503 | Clip |
|
- | |||||
| 59 | M0234117 | Screw |
|
- | |||||
| 60 | B5684101 | Protector, Thermal |
|
- | |||||
| 61 | C3671601 | Top-light Shield |
|
- | |||||
| 62 | M0216517 | Screw |
|
- | |||||
| 63 | C3671502 | Back-light Shield |
|
- | |||||
| 64 | A3030309 | Gasket (per Foot) |
|
- | |||||
| 65 | A3167501 | Bulb Q |
|
$ 28.47 | |||||
| 66 | B5679502 | Lampholder |
|
- | |||||
| 67 | A3191301 | Gasket-light Shield |
|
- | |||||
| 68 | M0370004 | Strain Relief |
|
- | |||||
| 69 | D7152403 | Oven Wldmt |
|
- | |||||
| 70 | D7190902 | Grease Shield |
|
- | |||||
| 71 | D7107702 | Tray, Glass, Oven |
|
- | |||||
| 72 | D7230901 | Wiring Harness |
|
- | |||||
| 74 | B5679302 | Arm-cb |
|
- | |||||
| 75 | A3191401 | Pin-cb |
|
- | |||||
| 76 | M0273504 | Washer |
|
- | |||||
| 77 | B5682701 | Spring-cb Arm |
|
- | |||||
| 78 | B5678201 | Brkt-spring Anchor |
|
- | |||||
| 79 | M0201903 | Machine Screw |
|
- | |||||
| 80 | B5661601 | Bushing,stirrer |
|
- | |||||
| 81 | D7104401 | Fan, Stirrer |
|
- | |||||
| 82 | A3165901 | Spacer,stirrer |
|
- | |||||
| 83 | B5663801 | Wldmt,stirrer Supt |
|
- | |||||
| 84 | M0216517 | Screw |
|
- | |||||
| 85 | M0320901 | Terminal |
|
- | |||||
| 86 | B5677202 | Terminal Block |
|
- | |||||
| 87 | A3196401 | Bushing |
|
- | |||||
| 88 | D7181101 | Scroll |
|
- | |||||
| 89 | B5107614 | Gasket |
|
- | |||||
| 93 | A3205601 | Insulation |
|
- | |||||
| 97 | B5699801 | Timer |
|
- | |||||
| 98 | M0218116 | Screw |
|
- | |||||
| 99 | B5699601 | Bracket |
|
- | |||||
| 100 | A3220701 | Switch, Cut-off |
|
- | |||||
| 101 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 102 | WP59002061 | Screwxxx (Replaces: M0216616) |
|
$ 6.98 | |||||
| 103 | M0202521 | Screw |
|
- | |||||
| 104 | A4539601 | Pop Rivet |
|
- | |||||
| 105 | M0370403 | Thermal Prot |
|
- | |||||
| 106 | M0115802 | Clip |
|
- | |||||
| 107 | A0304501 | Connector A-k |
|
- | |||||
| NI | A4539601 | Pop Rivet |
|
- | |||||
| NI | A3097501 | Seal, Access Panel |
|
- |
