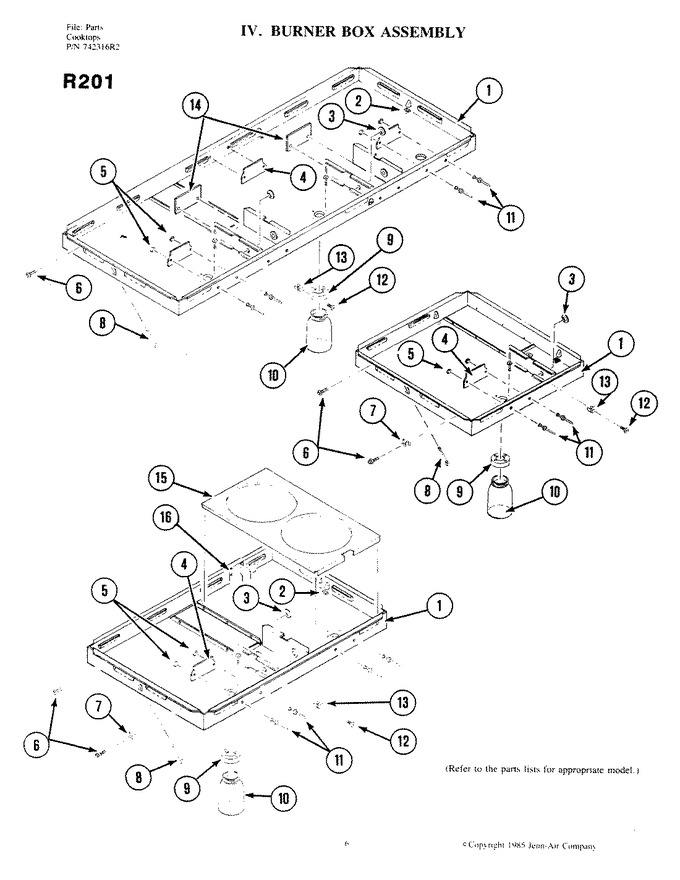

01 - Blower Assembly
02 - Burner Box Assembly
03 - Escutcheon Assembly
04 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE81-07374A | Box, Burner (Replaces: 702010) | 1 |
|
$ 254.72 | ||||
| 2 | M0282009 | Nut,square (Replaces: Y707124) | 1 |
|
$ 12.06 | ||||
| 3 | Y707695 | Bushing | 1 |
|
- | ||||
| 4 | W10124350 | Not Required Part Or See Note | 1 |
|
- | ||||
| 5 | W10124350 | Not Required Part Or See Note | 1 |
|
- | ||||
| 6 | W10124350 | Not Required Part Or See Note | 1 |
|
- | ||||
| 7 | W10124350 | Not Required Part Or See Note | 1 |
|
- | ||||
| 8 | Y707121 | Screw | 1 |
|
- | ||||
| 9 | W10124350 | Not Required Part Or See Note | 1 |
|
- | ||||
| 10 | W10124350 | Not Required Part Or See Note | 1 |
|
- | ||||
| 11 | WP210720 | Rivet, Jar Lid (Replaces: Y707128) | 1 |
|
$ 12.14 | ||||
| 12 | W10124350 | Not Required Part Or See Note | 1 |
|
- | ||||
| 13 | W10124350 | Not Required Part Or See Note | 1 |
|
- | ||||
| 14 | 707746 | Insulator | 1 |
|
- | ||||
| 15 | Y707822 | Insert, Burner Box | 1 |
|
- | ||||
| 16 | W10124350 | Not Required Part Or See Note | 1 |
|
- |
