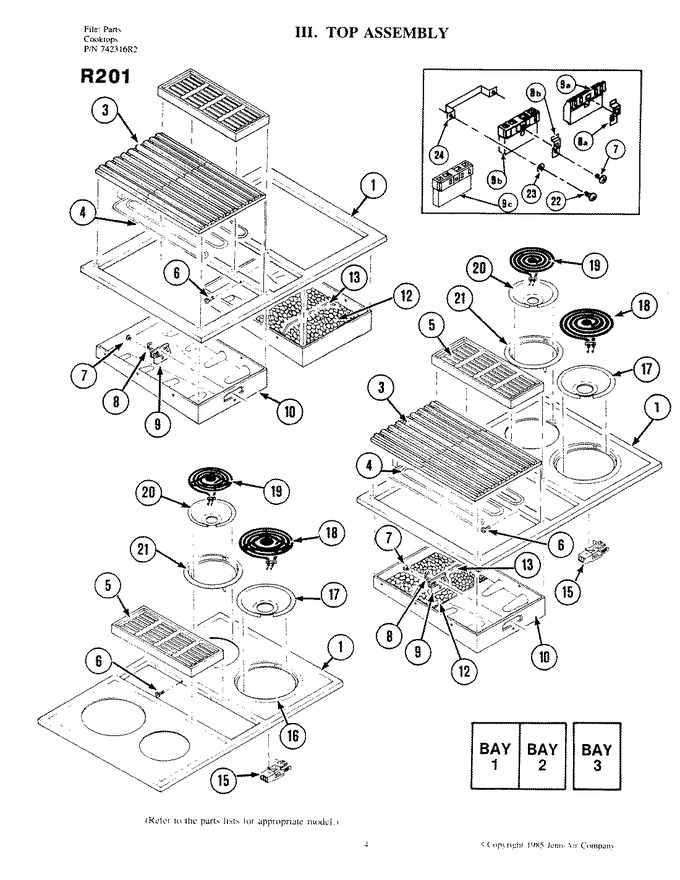

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701841		Top Assembly	1	Appelez-nous	-
2	707886		Grate	1	Appelez-nous	-
3	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
4	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
5	DE81-04768A		Grill, Air   (Replaces: 700667)	1			$ 109.33
6	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
7	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
8	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
9	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
10	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
11	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
12	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
13	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
14	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
15	12001676		Kit, Wire Element   (Replaces: 700154)	1		Immediately	$ 28.45
16	WPY707453		Adaptor, Ring   (Replaces: Y707453)	1		Immediately	$ 85.57
17	715878		Pan, Drip (8``)	1		Immediately	$ 21.16
18	WPY04100166		Element, Conv.(8`` 240v)   (Replaces: 715928)	1		Immediately	$ 47.21
19	WPY04100165		Element, Conv.(6`` 240v)   (Replaces: 715927)	1		Immediately	$ 50.62
20	715877		Pan, Drip (6``)	1		Immediately	$ 19.39
21	WPY707454		Adaptor, Ring (6``)   (Replaces: Y707454)	1		Immediately	$ 80.69
22	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
23	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
