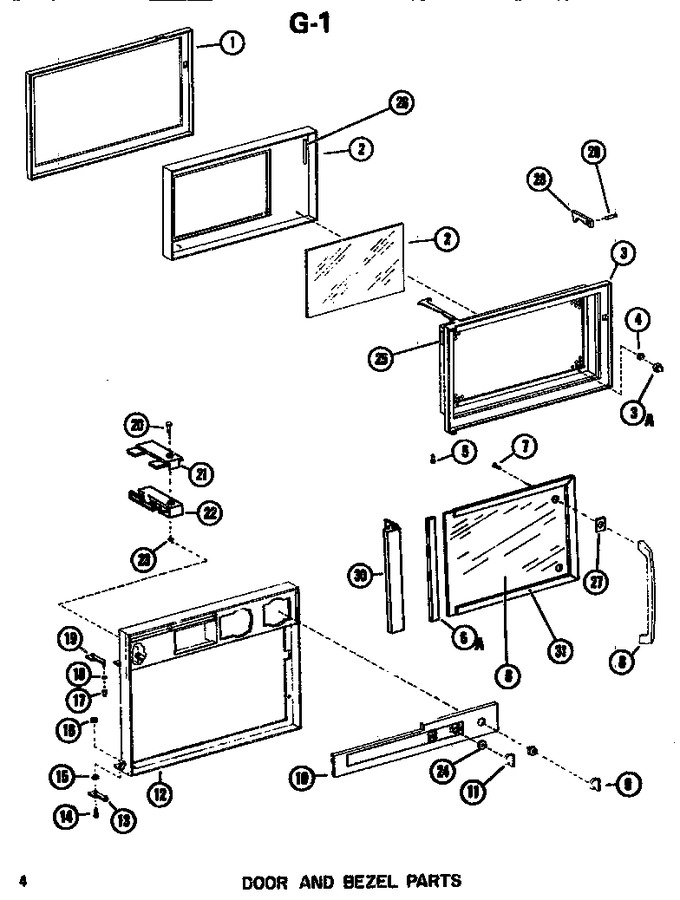

01 - Door & Bezel


02 - Electrical


03 - Interior


04 - Interior


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0275141		Tape, Gasket To Door, 1``		Appelez-nous	-
1	D7104803		Gasket Door		Appelez-nous	-
2	D7143801		Door		Appelez-nous	-
3	M0285401		Push Nut		Appelez-nous	-
3	D7110407		Door Weld		Appelez-nous	-
4	M0288801		Nut K		Appelez-nous	-
5	M0229916		Screw T.c		Appelez-nous	-
6	A3245001		Gasket		Appelez-nous	-
6	C8786001		Window-door		Appelez-nous	-
7	M0230018		Screw		Appelez-nous	-
8	B5657201		Door Handle		Appelez-nous	-
9	C8759503		Knob-timer		Appelez-nous	-
10	D7320401		Escutcheon-control		Appelez-nous	-
11	C8791802		Knob-switch		Appelez-nous	-
12	D7284601		Bezel-oc		Appelez-nous	-
13	B5738701		Hinge Plate		Appelez-nous	-
14	WPW10001160		Screw   (Replaces: M0200316)				$ 8.86
15	M0272402		Lock Washer		Appelez-nous	-
16	WP488130		Nut-keps   (Replaces: M0280801)				$ 6.27
17	A3168101		See Svc Ltr Cr-163d		Appelez-nous	-
18	M0272402		Lock Washer		Appelez-nous	-
19	B5738601		Hinge Plate		Appelez-nous	-
20	A3222601		Pin-door Stop		Appelez-nous	-
21	C8710902		Bushing-door Stop		Appelez-nous	-
22	C8710901		Bushing-door Stop		Appelez-nous	-
23	A3171501		Clip,hairpin		Appelez-nous	-
24	A3257401		Bushing-timer		Appelez-nous	-
25	M0275117		Tape Per Roll A		Appelez-nous	-
26	M0275501		Sealer		Appelez-nous	-
27	B5769701		Handle Spacer		Appelez-nous	-
28	A3183001		Latch, Door		Appelez-nous	-
29	M0119001		Pin		Appelez-nous	-
30	C3679802		Trim		Appelez-nous	-
31	D7228401		Trim-door		Appelez-nous	-
NI	A3030328		Gasket (1= 1ft.)		Appelez-nous	-
