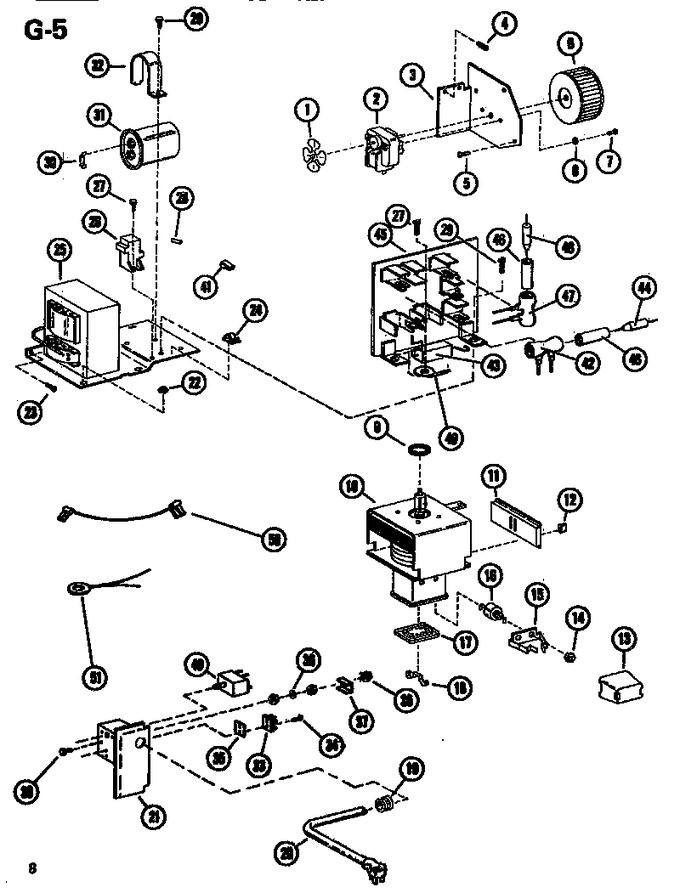

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B5661801		Fan Blade		Appelez-nous	-
2	M0306702		Motor, Blower		Appelez-nous	-
3	B5657501		Bracket,motor Mount		Appelez-nous	-
4	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
5	M0230017		Screw,tc		Appelez-nous	-
6	B5660901		Blower Wheel		Appelez-nous	-
7	M0202642		Screw		Appelez-nous	-
8	M0272605		Washer		Appelez-nous	-
9	A3185102		Gasket, Magnetron		Appelez-nous	-
10	D7157002		Magnetron Kit,700w		Appelez-nous	-
11	B5679101		Baffle		Appelez-nous	-
12	M0113504		Clip K		Appelez-nous	-
13	B5656001		Shield Hv K		Appelez-nous	-
14	M0281901		Hex Nut		Appelez-nous	-
15	B5655902		Clip K		Appelez-nous	-
16	A3148801		Capacitor K		Appelez-nous	-
17	B5647901		Cover Cap Box K		Appelez-nous	-
18	A3145401		Bale Strap K		Appelez-nous	-
19	A3278802		Strain Relief		Appelez-nous	-
20	B5669001		Cord, Power		Appelez-nous	-
21	B5745402		Panel-back		Appelez-nous	-
22	WP487939		Nut   (Replaces: M0282015)				$ 6.95
23	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.05
24	M0110501		Clip K		Appelez-nous	-
25	D7321601		Transformer		Appelez-nous	-
26	11QBP0235		Kit, Diode   (Replaces: B5767801)				$ 15.33
27	M0216517		Screw		Appelez-nous	-
28	M0325301		Insulator, Term. K		Appelez-nous	-
29	M0218116		Screw		Appelez-nous	-
30	M0305202		Resistor A		Appelez-nous	-
31	R0160007		Capacitor Kit		Appelez-nous	-
32	A3197101		Strap-capacitor A		Appelez-nous	-
33	A3259301		Terminal Block		Appelez-nous	-
34	M0229005		Screw K		Appelez-nous	-
35	A3180201		Insulation Board		Appelez-nous	-
36	M0270524		Washer		Appelez-nous	-
37	A3197701		Washer-u Type		Appelez-nous	-
38	M0282005		Nut K				$ 7.07
39	M0202520		Screw		Appelez-nous	-
40	B5717801		Line Filter Xx		Appelez-nous	-
41	M0325501		Insulator, Pod K		Appelez-nous	-
42	M0305009		Resistor A		Appelez-nous	-
43	M0305204		Resistor		Appelez-nous	-
44	M0308102		Fuse		Appelez-nous	-
45	B5762201		Terminal Board		Appelez-nous	-
46	M0321701		Sleeve		Appelez-nous	-
47	M0305011		Resistor, 500 Ohm, 8 Watt		Appelez-nous	-
48	M0308106		Fuse		Appelez-nous	-
49	M0320901		Terminal		Appelez-nous	-
50	C3665887		Wire, Jumper, Blue		Appelez-nous	-
50	C3655888		Jumper Wire		Appelez-nous	-
51	C3655898		Jumper Wire		Appelez-nous	-
NI	D7292634		Jumper Wire		Appelez-nous	-
NI	D7292612		H.v. Wire Jumper, Fuse Board,		Appelez-nous	-
NI	C3655807		Jumper Wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
