01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker


06 - Shelves & Accessories


07 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72345-4-WW		Panel, Frz. Door (wht)		Appelez-nous	-
2	69464-1		Liner		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
3	70020-1		Gasket, Door		Appelez-nous	-
4	66982-31		Nameplate (wht)		Appelez-nous	-
5	69256-2		Stop, Door		Appelez-nous	-
6	67634-2		Plug Button, Hinge Cup (wht)		Appelez-nous	-
7	54233-2		Washer		Appelez-nous	-
8	55782-10		Plug Button, Hdle & Door Stop		Appelez-nous	-
9	69300-1		Handle, Door		Appelez-nous	-
9	9986-122		Screw		Appelez-nous	-
10	68959-1		Insert		Appelez-nous	-
11	9986-112		Screw		Appelez-nous	-
11	60445-3		Insert, Handle (back)		Appelez-nous	-
12	69301-1		Shim, Handle		Appelez-nous	-
13	56209-3		Clip, Stop Screw		Appelez-nous	-
14	60123-2		Clip, Stop Screw		Appelez-nous	-
15	WP61003045		Trim   (Replaces: 68832-3)				$ 129.55
16	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
17	56144-13		Plug Button, Upper Hinge (wht)		Appelez-nous	-
18	53709-20		Hinge, Upper		Appelez-nous	-
19	65031-1		Shim, Upper Hinge		Appelez-nous	-
20	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
20	54233-7		Washer		Appelez-nous	-
21	68811-2		Hinge, Center		Appelez-nous	-
22	69515-1		Shim, Center Hinge		Appelez-nous	-
23	65275-62		Screw		Appelez-nous	-
23	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
24	69517-1		Pin, Center Hinge		Appelez-nous	-
25	67483-6		Washer		Appelez-nous	-

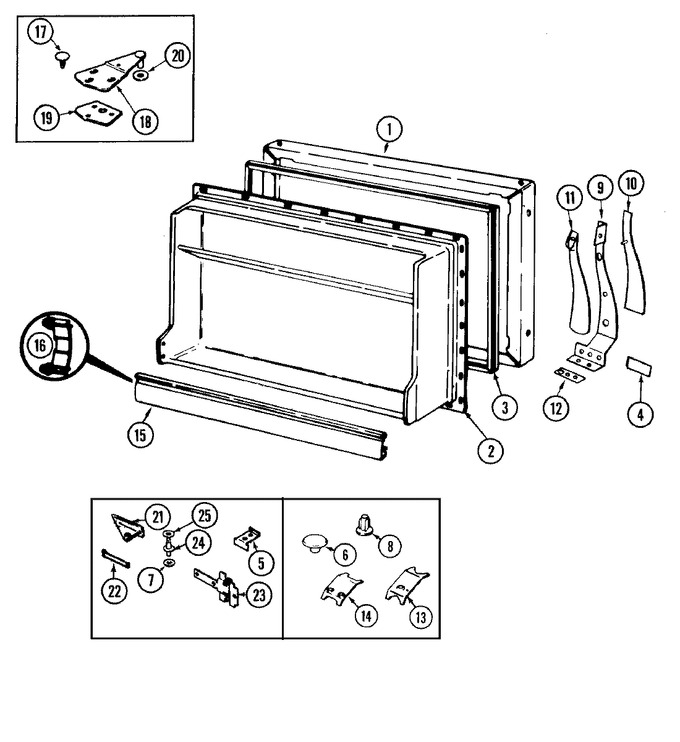

    View Diagram in Separate Window       Print Part List
