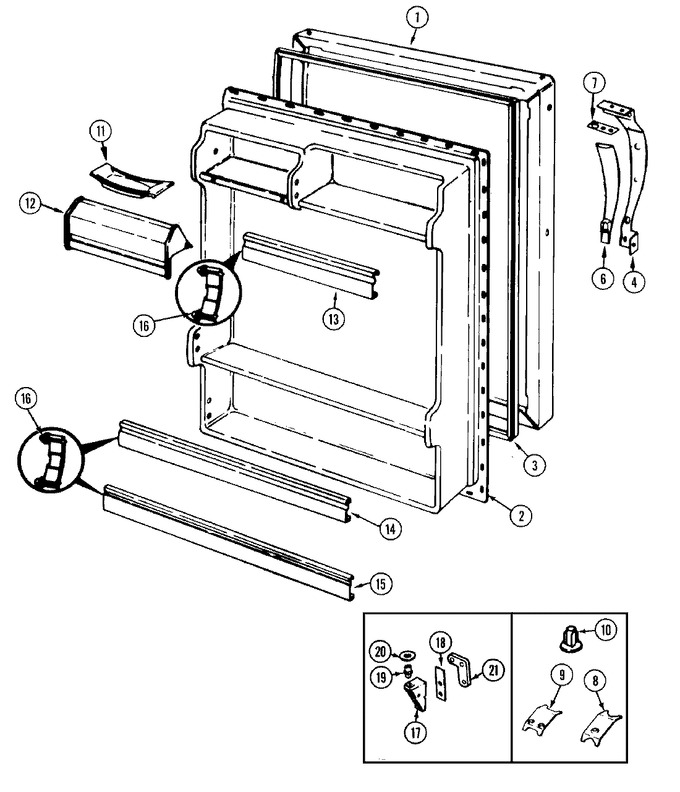

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72349-4-WW		Panel, F.f. Door (wht)		Appelez-nous	-
2	69443-1		Liner, F.f. Door		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
3	70020-2		Gasket, Door		Appelez-nous	-
4	69300-2		Handle, Door		Appelez-nous	-
4	9986-122		Screw		Appelez-nous	-
5	68959-1		Insert		Appelez-nous	-
6	9986-112		Screw		Appelez-nous	-
6	60445-3		Insert, Handle (back)		Appelez-nous	-
7	69301-1		Shim, Handle		Appelez-nous	-
8	56209-3		Clip, Stop Screw		Appelez-nous	-
9	60123-2		Clip, Stop Screw		Appelez-nous	-
10	55782-10		Plug Button, Hdle & Door Stop		Appelez-nous	-
11	29936-2		Tray, Butter		Appelez-nous	-
12	69058-23		Door, Dairy		Appelez-nous	-
13	WP61003045		Trim, Door Shelf   (Replaces: 65151-344)				$ 129.55
14	WP61003045		Trim, Door Shelf   (Replaces: 65151-95)				$ 129.55
15	WP61003045		Trim, Door Shelf   (Replaces: 65151-113)				$ 129.55
16	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
17	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-
17	403100-1		Screw		Appelez-nous	-
17	69516-2		Hinge, Lower (blk)		Appelez-nous	-
18	69510-1		Shim, Lower Hinge		Appelez-nous	-
19	69845-1		Pin, Lower Hinge				$ 44.55
20	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
20	67483-4		Washer		Appelez-nous	-
21	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
21	403100-1		Screw		Appelez-nous	-
21	69511-1		Tapping Plate, Lower Hinge		Appelez-nous	-
