SELECT A DIAGRAM

01 - Doors


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Unit Compartment & System

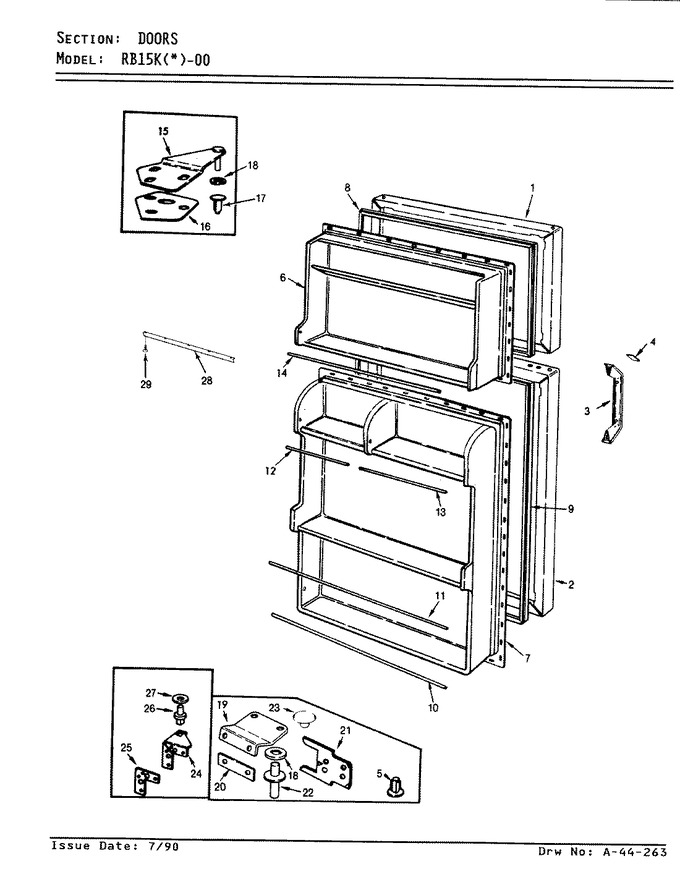

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68470-9-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	68469-6-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
3	65156-3		Handle, Door		Appelez-nous	-
4	65155-9		Insert		Appelez-nous	-
4	WP7101P126-60		Screw   (Replaces: 400061-1)			Immediately	$ 6.85
5	55782-6		Plug Button (almond)		Appelez-nous	-
6	65930-14		Liner, Frz. Door		Appelez-nous	-
7	65935-5		Liner, Door		Appelez-nous	-
7	9986-12		Screw,door Liner		Appelez-nous	-
8	66199-1		Gasket, Door		Appelez-nous	-
9	66199-2		Gasket, Door		Appelez-nous	-
10	53605-7		Retainer		Appelez-nous	-
11	53605-19		Trim		Appelez-nous	-
12	53605-2		Trim		Appelez-nous	-
13	53605-25		Retainer, Ref Shelf (12 9/64``)		Appelez-nous	-
14	53605-7		Retainer		Appelez-nous	-
15	53709-20		Hinge, Upper		Appelez-nous	-
16	65031-1		Shim, Upper Hinge		Appelez-nous	-
17	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
18	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
18	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
18	54233-2		Washer		Appelez-nous	-
18	54233-1		Washer				$ 7.71
19	68811-2		Hinge, Center		Appelez-nous	-
20	68812-1		Shim, Center Hinge		Appelez-nous	-
21	65275-24		Screw		Appelez-nous	-
21	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
22	67322-1		Pin, Center Hinge		Appelez-nous	-
23	67634-3		Plug Button, Hinge Cup (alm)		Appelez-nous	-
24	67714-10		Hinge, Lower		Appelez-nous	-
25	65790-3		Tapping Plate		Appelez-nous	-
25	60626-1		Shim, Lower Hinge		Appelez-nous	-
26	68788-1		Hinge Pin		Appelez-nous	-
27	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
27	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
27	403062-5		Screw		Appelez-nous	-
28	68544-1		Seal, Secondary		Appelez-nous	-
29	52447-4		Clip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
